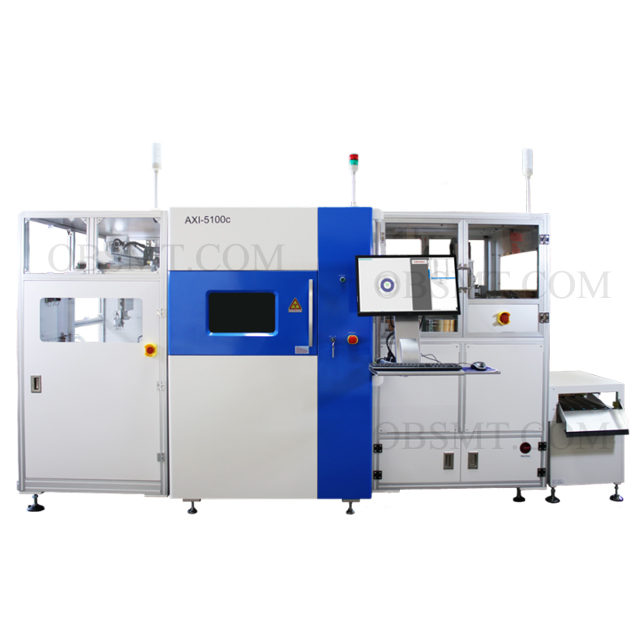

X-Ray Component Counter

Automated component counting system in the world which features an automatic loader and label printer;With data management providing complete inventory control and by using an inline integrated conveyor system, it counts components faster than any system on the planet. Save time, save money, reduce labor and avoid the dreaded “line down” scenario due to lack of a component.

Model: OB-AXI-5100C
Brand: OUBEL
Delivery time: 30-35 working days

Categories: , Tags: , , , , , , , , , , , , ,
Leave message

Leave message

Be the first to messgae “X-Ray Component Counter”

Your email address will not be published.

Description

X-Ray Component Counter

Features:

1.Fast, Intuitive, user friendly software interface with 99.9% accuracy;

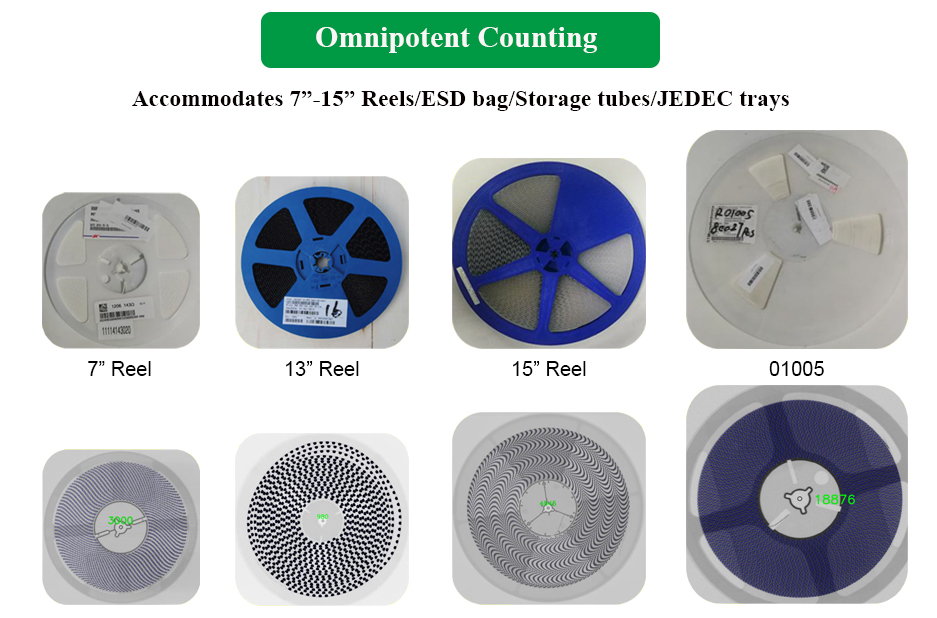

2.Scanning of 7”-15” reels;

3.Scanning of JEDEC trays and counting of BGA balls;

4. Scanning of loose wound components or tightly wound components;

5.Scanning of sealed ESD bags;

6.Built in library with automatic storage;

7.Automatic continuous feeding and positioning;

8.Automatic Loader & Printer;

9.17″ x 17″ Flat Panel Detector;

10.Smart Reader that automatically acquires one dimensional or two-dimensional code and material height, size, type and other information;

11.Industrial PC: Microsoft Windows 10.

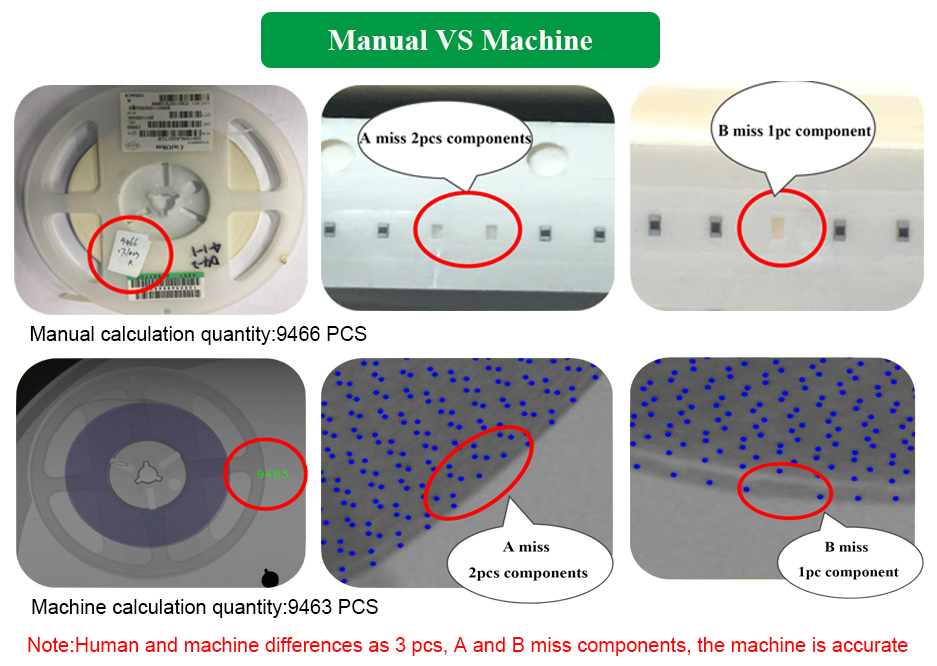

Details:

Specifications:

TECHNICAL OPERATION
Compatible Reel Sizes 7”-15” reel with reel height up to 32mm
Minimum Component Size 0201/01005”
Count Accuracy >99.9%
Types of Inspection Standard SMT and TH, Standard reels up to 15” diameter, Cut Strips, ESD Bags, JEDEC Trays and BGA Ball Count and more.
Automatic height detec
tion, reel size detection and barcode scanning
Label Printing Software interface for automatic label printing of barcodes and or component count results. (label printer optional)
X-RAY TUBE
X-Ray Source  Micro-focus, integrated (closed)
Operating voltage 80kV Maximum
DIGITAL FLAT PANEL DETECTOR
Size 17″ x 17″
REEL LOADER
Dimensions 1300mm L x 1400mm W x 1800mm H
Weight 500kg
Operating System PLC
Voltage / Pressure 220 v/>_0.1Mpa
Loader Reel Sizes 7″, 13″ and 15″
Maximum Qty of Reels 7″ H 15mm: 200(max), 13″ & 15″ H 15mm: 50(max)
Trolleys 2
Reel Loader Trolley
Reel Rise Elevator
Reel Transplant Manipulator
Reel Output Automatic Belt
LABEL PRINTER
Dimensions 1060mm L x 1050mm W x 1800mm H
Weight 700kg
Operating System PLC
Voltage / Pressure 220 v/>_0.1Mpa
Speed of Print & Label 10S
Label Size 60mm x 25mm
GENERAL MACHINE SPECS
Dimensions 9.6’ x 4.1’ x 7.1’ / 2930mm x 1255mm x 2180mm
Weight 2400kg / 5291 lbs.
Power  AC 220V 3.0KW
Industrial PC  Microsoft Windows 10
