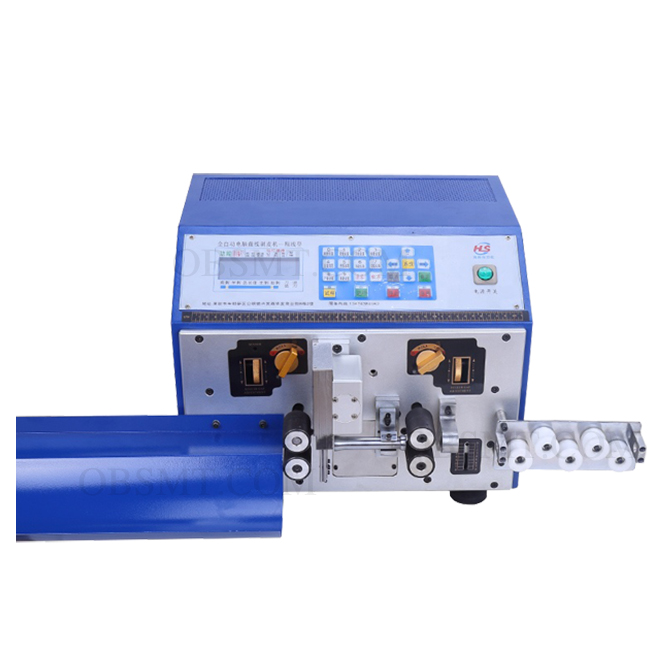

Wire Stripping Machine

Model: OB-WS034
Brand: OUBEL
Delivery Time: 5-7 working days

Description

Wire Stripping Machine Use in Cable Wire Production Line,High Speed,High Efficiency!

Leave message

Leave message

Be the first to messgae “Wire Stripping Machine”

Your email address will not be published.

Description

Wire Stripping Machine

Features:

1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time;

2.Fast efficient,Compatible with the general features of 220 # wire cutting machine;

3.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity;

4.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function once completed, can instantly transform wire specifications and dimensions,it’s very economic;

5.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

Specifications:

Dimension  470×720×340mm
Weight 45kg
Display method Chinese or English interface display
Power supply  AC220/50HZ
Capacity 420W
Cutting length 1mm—99999mm
Cutting Tolerance Adjustable
Peeling length 1.0mm-999.9mm(According to the wire)
Applicable wire core area 32#-14#
Productivity 3500-7000pcs/h(according to the cutting length)
Tool Material Tungsten steel / white steel
Stripping speed Fast
Cable outer diameter Adjustable
Stripping quality Excellent
Decimal precision Yes
Drive mode Four simultaneously drive
Stripping pressure adjustment Adjustable
Speed adjustment 0-9
Stripping Mode long wire/ short wire /Multi-stripping / multi stripping
Applicable Wire Multi-core wire (non-twisted wire) Single Line: Line 4 square within, AWG # 14– AWG # 32 (available twisted wire)
