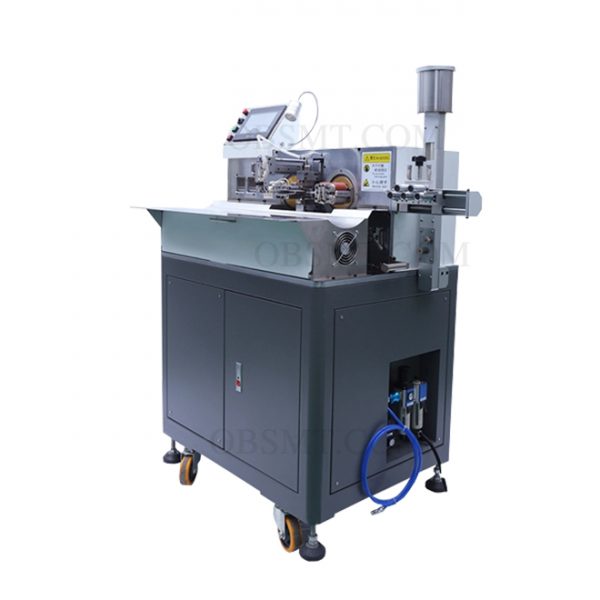

Wire Soldering Tinning Cutting Stripping Machine
Model: OB-WS11
Brand: OUBEL
Delivery Time: 5-7 working days
Description
Cutting, Stripping, Twisting, Tinning (single or both ends)
Leave message
Description
Wire Soldering Tinning Cutting Stripping Machine
Features
1.Panasonic Servo motor: 6 sets
2.Pneumatic components: Solenoid valve ,cylinder, gas pipe with SMC brand
3.Air pressure dedication: SMC brand
4.Screw and guide: Taiwan Silver brand
5.Controller: USA RAM computer control system
6.Operation System: KINCO touch screen
7.Adjustable Design: size of blade, length of stripping, depth of tinning
Specifications
| Voltage | AC220V |
| Frequency | 50HZ/60HZ |
| Working Content | Cutting, Stripping, Twisting, Tinning (single or both ends) |
| Cable Type | UL/PVC/PE Electronic cable, silicon cable, paint cable,super thin Teflon cable |
| Electric Cable SPE | UL1007AWG#16-AWG#32 |
| OD Range | 0.3mm-3.0mm |
| Cable Feeding Mode | 10/8/5 cables( changeable as you like) |
| Length of Cutting | 8mm-6000mm |
| Length of Stripping | 0.1mm-9.9mm |
| Length of Twisting | 3.0mm-8.0mm |
| Length of Tinning | 0.1mm-9.9mm |
| Air Pressure | 0.5mpa-0.7mpa |
| Output | 20000PCS/H (depends on different cables) |
| Crimping Pressure | 1.5T |
| Number of Flat Cable | 2-20 pin( ODM available) |
| Net Weight | 330KG |
| Gross Weight | 340KG |
| Package | Export Quality Wooden Case |
| Package Size | 115*75*125cm |
| Machine Size | 112*73*120cm |
| Delivery Time | Within 7 working days after deposit |
| Warranty | Warranty for one year with lifetime maintain service |
