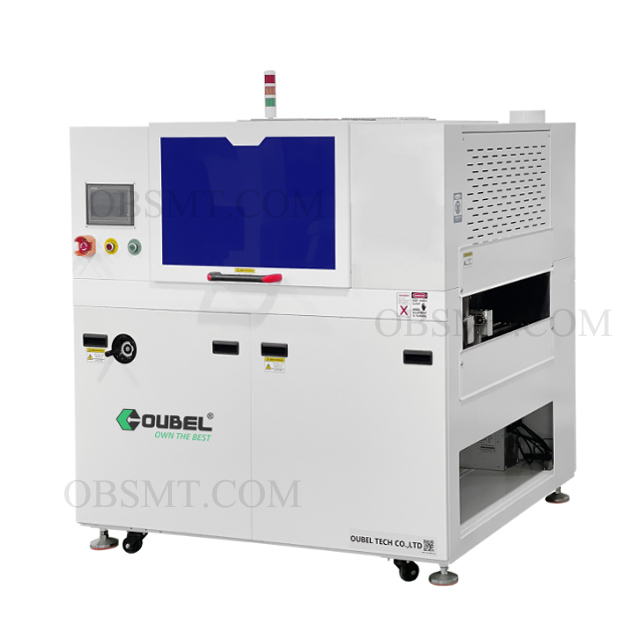

UV curing oven

Features

1.Stainless steel chain conveyor, equipped with chain drag bars, extending the service life of the track;

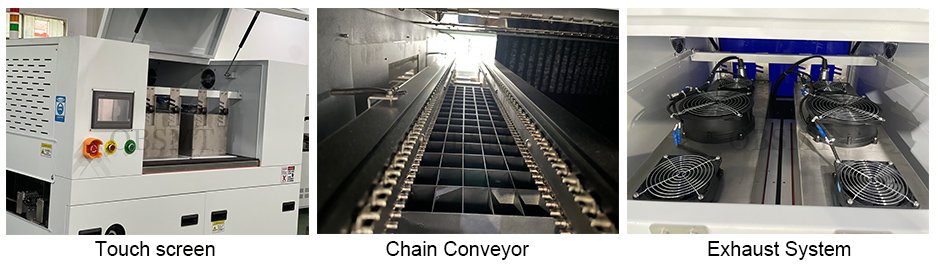

2.Touch screen control, parameterized setting of transportation speed, digital operation;

3.Parameterized setting of lamp power percentage, automatic entry into energy-saving mode in trackless or standby mode;

4.Special heat dissipation design to avoid unnecessary damage to special types of heat sensitive materials due to excessive temperature in the furnace;

5.Special exhaust system, equipped with front and rear exhaust, side exhaust, bottom exhaust, automatic circulation, controllable furnace temperature;

6.Four sets of air ducts can reduce the surface temperature of the product, improve UV light energy reflection, reduce light loss, and effectively avoid injury to staff. The lamp set is easy to replace, and the replacement time is ≤ 10min;

7.Open rack, made of acrylic on the front door, extremely convenient for operation and maintenance, and easy to remove;

8.Double layer UV protection can close the observation window, with one layer of heat insulation and one layer of light insulation. It can view the status of the plate in real time, and can be closed if it is not used for a long time；

9.Adjustable height of lamp set, manual adjustment:0-100mm;

10.Equipped with a rail inlet and outlet ventilation system to effectively remove the odor of solidified ozone;

11.Height of circuit board components ± 100mm (upper and lower 100mm respectively);

12.Option function:Electric adjustment of rail, electric lifting of lamp set, bottom return board.

Specifications
