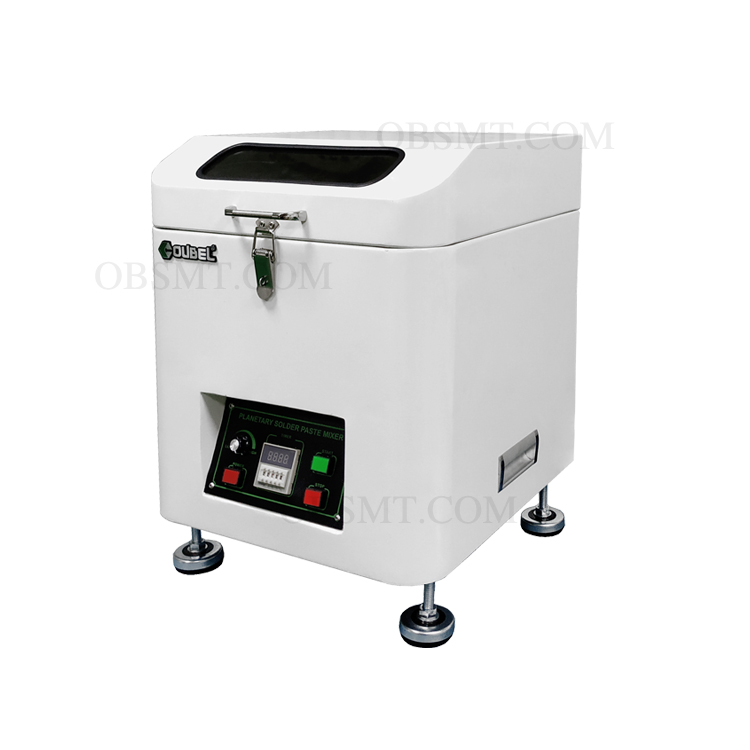

Solder paste mixer

Model: OB-M628
Brand: OUBEL
Delivery Time: 2-4 working days

Description

Solder paste mixer applies to centrifugal mixing
500g/bottle, 2 bottles/time.
Speed is adjustable.

Leave message

Leave message

Be the first to messgae “Solder paste mixer”

Your email address will not be published.

Description

Solder paste mixer

Features

1.Unique contoured shape,generous appearance and practical, which is made by advanced coating process workmanship

2.Mixing principle is on the basis of Motor rotation and revolution mode of agitation,no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming

3.Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient

4.Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption

5.Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active paste

6.Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance

7.Applies to Omron time relay controller, reliable and easy to operate.

Specifications

Model OB-M628
Dimensions 430×400×480(mm)
Revolution speed 600RPM/Min
Rotation speed 350RPM/Min
Power 1P AC110/220V 50/60HZ
Mixing method Centrifugal mixing
Mixing angle 45°
Mixing capacity 500g/jar,2jars/time
Weight Approx.40Kg

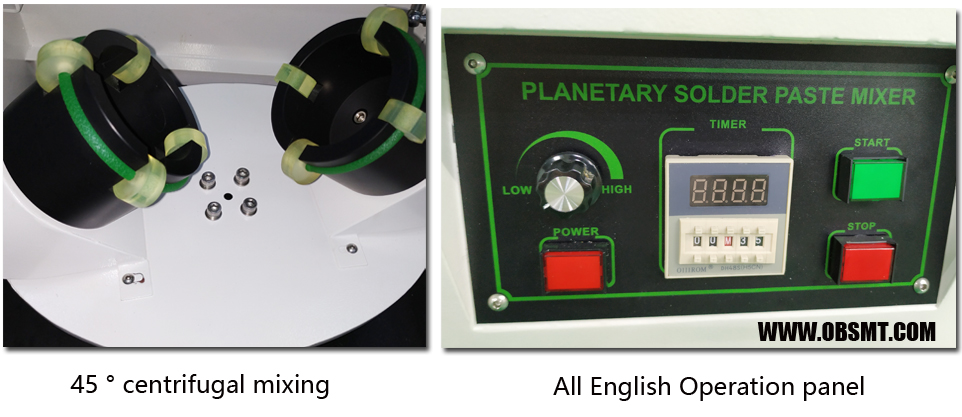

obsmt SMT solder mixer detail

obsmt SMT solder mixer detail

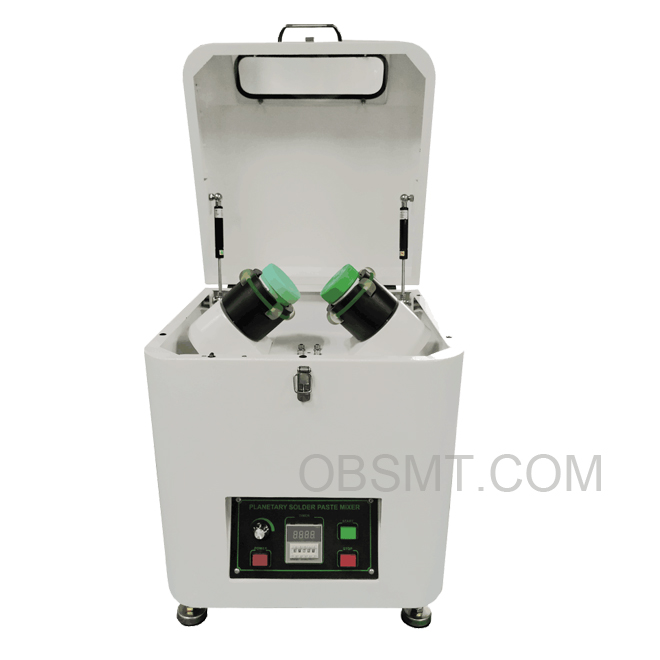

Shenzhen solder mixer factory OBSMT

Shenzhen solder mixer factory OBSMT
