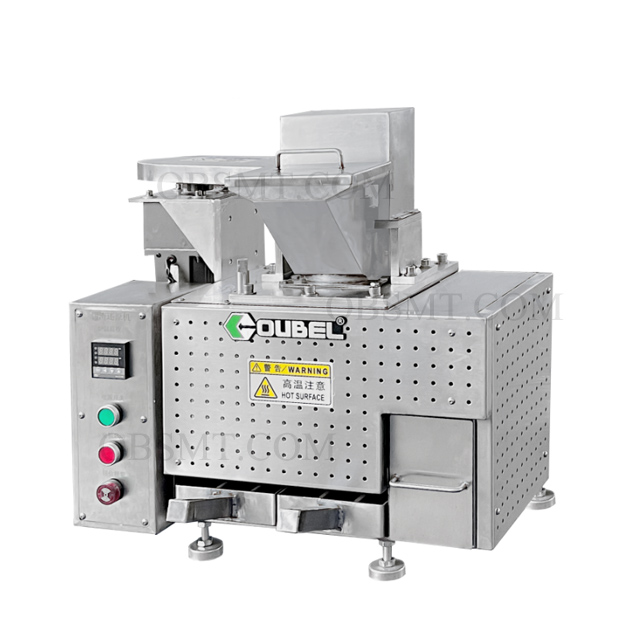

Solder Dross Recovery Machine

Model: OB-RS800
Brand: OUBEL
Delivery Time: 7-20 working day

Leave message
Description

Solder dross recovery machine can turn the solder dross, of which comes from wave soldering machine,reflow oven ,manual soldering into pure tin. Save cost!

Description

Solder Dross Recovery Machine

Features:

1.Highly effective recycling of the solder waste, up to 90% yield;
2.No need to add any chemicals or reducers to the process uses physical separation to ensure a good quality product;

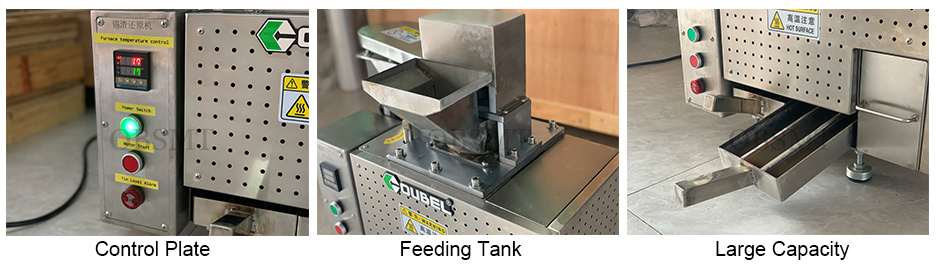

3.Button controls, digital temperature control sheet, accurate temperature control;
4.All-stainless steel tank, clean convenience;
5.316 grade stainless mixing bowl with an 10kg capacity with heating power for complete mixing;
6.Dross automatic feeding system, automatic feed screw;
7.Electronic liquid level alarm, manually put tin;
8.Automatic separation of tin and tin ash, into the tin and tin-ash collection device;
9.Small size, light weight, move convenience;
10.About 100kgs can be restored per day;
11.Independent smoke filtration system (Optional).

Specifications:

Model OB-SR800
Dimensions 500*250*600mm
Mixing motor 1φ 220V 90W
Mixing Heating Power 1.2KW
Mixing Capacity of Bottom Tin 10KG
Temperature Scope Room temperature – 350 ℃
Heating-up time 30MIN
Feeding time Continuous5-20kg/15min
Totol Power Consumption 2KW
Normal running power 0.6KW
Power 1φ220V 50Hz
Net Weight Appro.55kg
