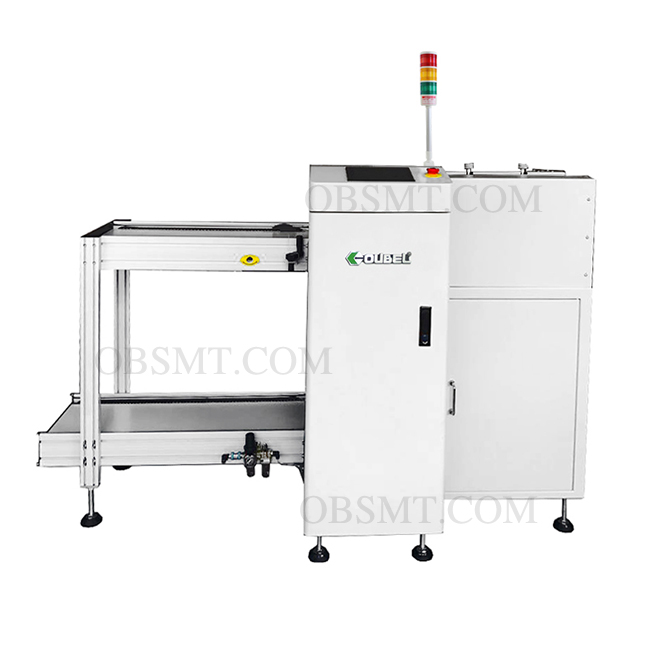

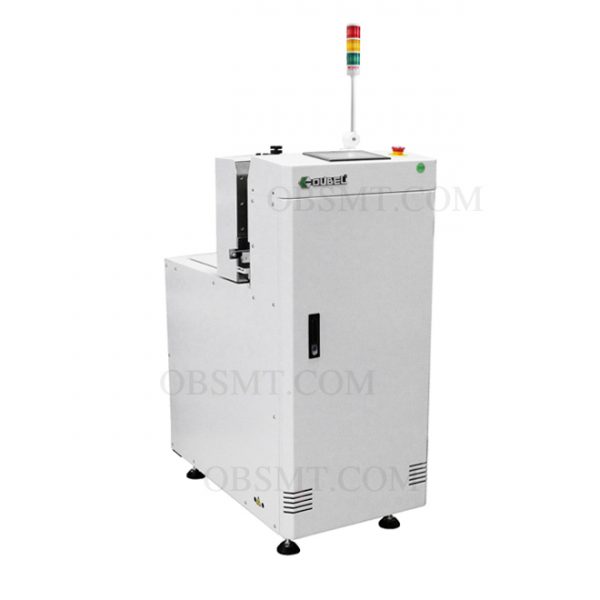

Auto PCB stacker
Model: OB-DL738
Brand: OUBEL
Delivery Time:4-10 working days
Description

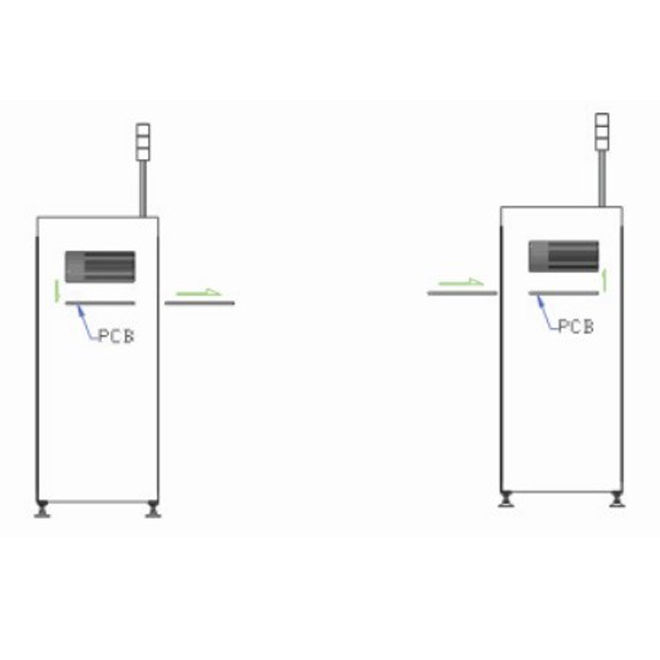

Auto PCB stacker is used for loading the bard PCBS in the SMT&DIP production line.
**E: sales@obsmt.com
Leave message
Description
Auto PCB stacker
Features：

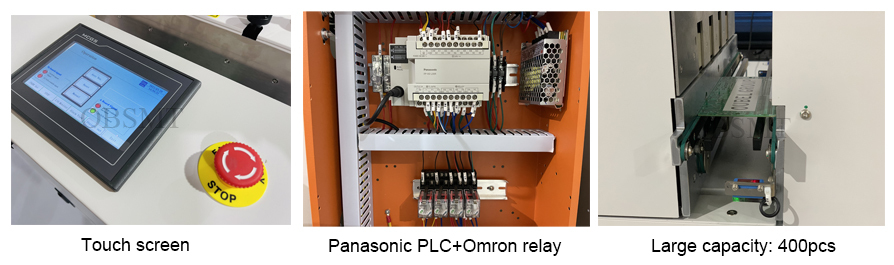

1.User friendly “soft touch”LED membrance control panel or touch screen can be selected.
2.Pass through mode provided.
3.Smooth and parallel width adjustment (leadscrew).
4.Small machine footprint.
5.With SMEMA signal.
Details：
Specifications:
| Model | OB-DL738 | ||
| Dimensions | 503*889*1200mm | ||
| PCB size | 50*50-460*460mm | ||
| Max. PCBs capacity | 400pcs | ||
| Cycle time | About 10s | ||
| Power source | AC 110V/220V 50/60HZ | ||
| Air pressure | 4-6 bar, max.10L/min | ||
| Conveyor height | 910±20mm | ||
| Conveyor direction | L-R or R-L (optional) | ||
| PCB thickness | Min 0.6MM | ||
| Weight | 200KGS | ||
