Small SMT LED production line
Brand: OUBEL
Delivery time: 7-10 working days
Description
It used for small quantity LED production,small footprint,save space.
Leave message
Description

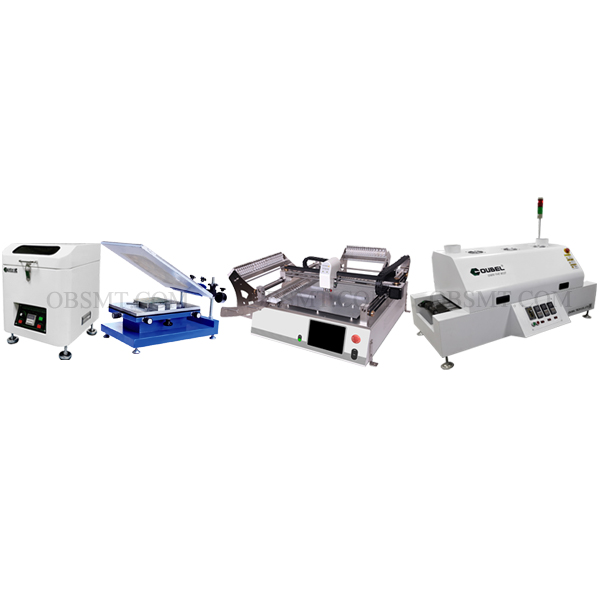

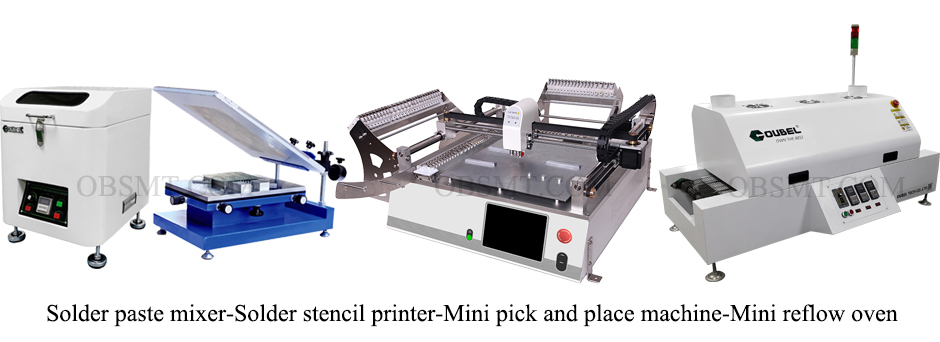

Small SMT LED production line
Solder paste mixer: It applies to centrifugal mixing.500g/bottle, 2 bottles/time.
| Model | OB-M628 |
| Dimensions | 430×400×480（mm) |
| Revolution speed | 600RPM/Min |
| Rotation speed | 350RPM/Min |
| Mixing capacity | 500g/jar,2jars/time |
| Weight | Approx.40Kg |
Solder stencil printer: It is used for printing the solder paste onto the bare PCB by manual.
| MODEL | OBMP-3040 |
| Dimensions | 560×390×350(mm) |
| Platform size | 300×400(mm) |
| PCB size | 300×400(mm) |
| Stencil size | 370×470(mm) |
| Printing speed | Manual control |
| Positioning mode | Side/Reference hole |
| Weight | Approx.40Kgs |
Desktop mini pick and place machine: It is suit for small quantity LED mounting.
Desktop mini reflow oven: It suit for small production,with 3 heating zones.
| Model | OB-R350 | |||||||
| Dimensions | 1400*610*650mm | |||||||
| Heating zone quantity | Up 3 down 0 | |||||||
| Heating zone length | 1000mm | |||||||
| Heating method | Hot air | |||||||
| Cooling zone qty | by cooling fan | |||||||
| PCB Max. width | Max.280mm | |||||||
| Conveyor method | By Mesh | |||||||
| Conveyor speed | 0-1500mm/min | |||||||
| Weight | Approx.60KGS | |||||||
Welcome to contact us to get more information,we will reply ASAP!
