Simple Auto SMT production line
Brand: OUBEL
Delivery time: 10-20 working days
Description
It is used for SMT production,save labor and high efficiency.
Leave message
Description

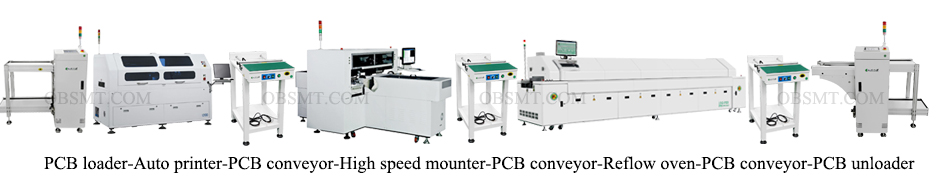

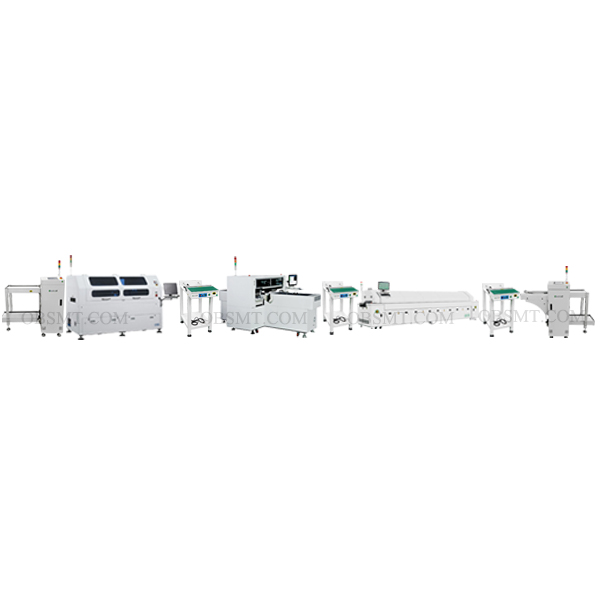

Simple Auto SMT production line
PCB loader: It is used for loading PCBs automatically in SMT&DIP production line.
| Model | OB-L708 |
| Dimentions | 1430*800*1600mm |
| Magazine size | 355*320*563(mm) |
| PCB size | 350*50-250(mm) |
| Weight | Approx.220KGS |
Auto Printer: It is used for LED/PCB auto printer,save labor.
| Model | OB-1200 |
| Stencil size | 1100*300mm-1500*750mm |
| PCB size | 80*50-1200*340mm |
| Scraper speed | 10-200mm/sec |
| Camera system | CCD |
| Cycle time | 12s |
| Dimensions | 2220*1220*1500mm |
| Weight | 1500mm |
PCB conveyor
High speed pick and place machine:group picking and group placing; 30nozzles. Special for the LED tube ,LED strip large quantity production.
| Model | OB-G13 |
| Dimensions | 2700(L)*1700(W)*1400(H) |
| PCB size | 1200MM(L)*250MM(W) |
| Operation system | Windows XP |
| Chips | up 1206, 2835,3014,3528,LED tape chips. |
| Production qty | 110000-120000 points/hour (30 nozzles working at the same time) |
| Weight | 1700kgs |
8 zones reflow oven
| Model | HS-0802-LF |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
PCB unloader
| Model | OB-UL718 |
| Dimensions | 1730*765*1250mm |
| Magazine size | 355*320*563mm |
| PCB size | 350*50-250mm |
| Weight | Approx. 260KGS |
Welcome to contact us to get more information,we will reply ASAP!
