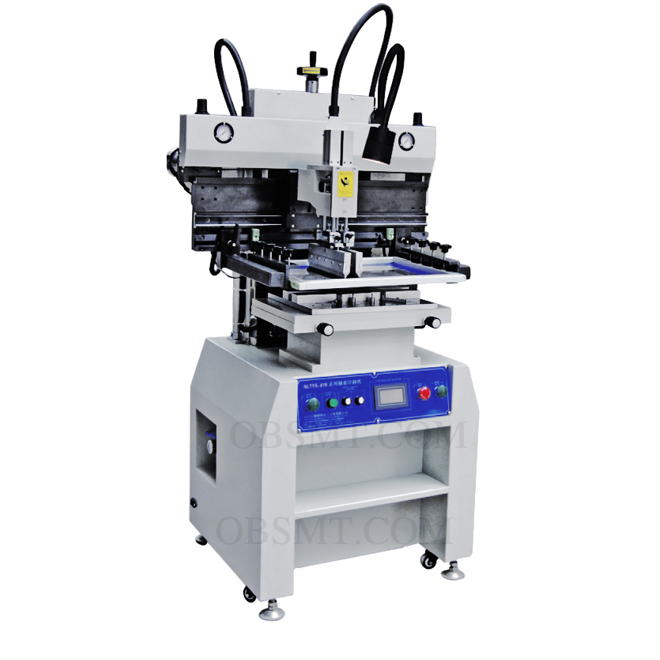

Semi-automatic solder paste printer
Model: OB-P618
Brand: OUBEL
Delivery Time: 4-7 working days
Description
Semi-automatic solder paste printer is used for printing the solder paste onto the bare PCB under the stencil.
**E: sales@obsmt.com
Leave message
Description
Semi-automatic solder paste printer
Features
1.Applies to Korean guide rail,printing precise is up to 0.2mm IC.
2.PLC + touch screen display, more stable and easy to operate.
3.Magnetic thimb + honeycomb board , more suitable for the double sides PCB and easier to find the empty space of the PCB.
4.Scrape angle ,pressure,trave length can be adjust,flexible.
5.The printing plate can be fine tuning X.Y axis,higher precise.
6.Automatic counting function, easy to statistics and arrange production.
7.Automatic alarm of cleaning the stencil , convenient for cleaning stencil in time and ensure the printing quality.
Specifications
| Model | OB-P618 | OB-P618A | OB-P618E |
| Dimensions | 850*670*1550(mm) | 1005*670*1550(mm) | 1650*670*1550(mm) |
| Platform size | 320*400(mm) | 320*600(mm) | 320*1300(mm) |
| PCB size | 300*400(mm) | 300*550(mm) | 300*1250(mm) |
| Stencil size | 550*680(mm) | 550*835(mm) | 550*1480(mm) |
| Printing speed | 0~8000(mm)/Min | ||
| PCB thickness | 0~100(mm) | ||
| PCB tuning range | Front/Side + 10mm | ||
| Power supply | 1PAC220V 50/60HZ | ||
| Platform height | 880(mm) | ||
| Repeatability | +/-0.01mm | ||
| Positioning mode | Outside/Reference hole | ||
| Weight | Approx.270Kgs | Approx.290Kgs | Approx.380Kgs |
