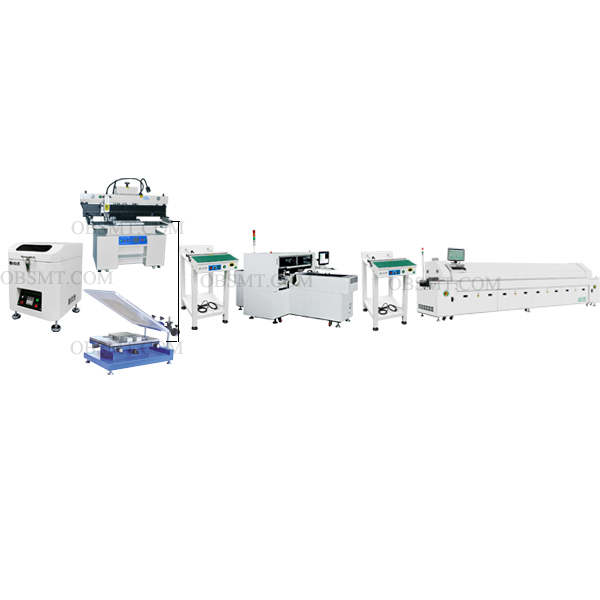

Semi-auto SMT production line
Brand: OUBEL
Delivery time: 10-20 working days
It is used for SMT production line,small footprint,save space.

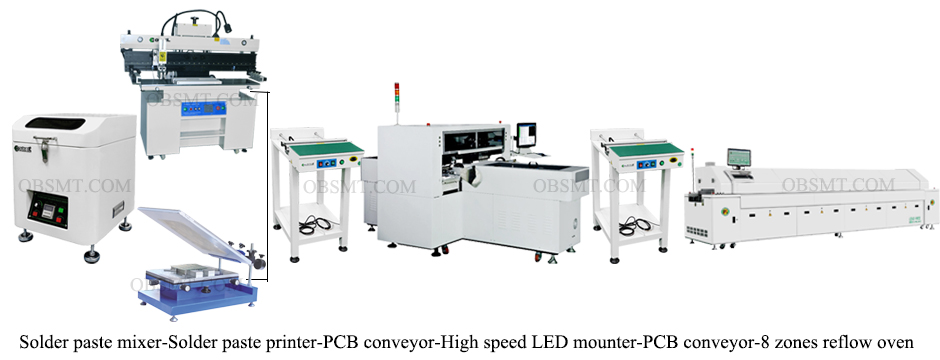

Semi-auto SMT production line
Solder paste mixer: It applies to centrifugal mixing.500g/bottle, 2 bottles/time.
| Model | OB-M628 |
| Dimensions | 430×400×480（mm) |
| Revolution speed | 600RPM/Min |
| Rotation speed | 350RPM/Min |
| Mixing method | Centrifugal mixing |
| Weight | Approx.40Kg |
Manual solder paste printer: It is used for printing the solder paste onto the bare PCB by manual.
| MODEL | OBMP-3040 |
| Dimensions | 560×390×350(mm) |
| Platform size | 300×400(mm) |
| PCB size | 300×400(mm) |
| Stencil size | 370×470(mm) |
| Printing speed | Manual control |
| Weight | Approx.40Kgs |
Semi-auto LED solder paste printer: Semi-auto LED PCB stencil printer is used for printing the solder paste onto the Bare PCB. Especially for 600mm/1200mm LED PCB.
| Model | OB-P618E |
| Dimensions | 1650*670*1550(mm) |
| Platform size | 320*1300(mm) |
| PCB size | 300*1250(mm) |
| Stencil size | 550*1480(mm) |
| Printing speed | 0~8000(mm)/Min |
| Weight | Approx.380Kgs |
PCB conveyor
| MODEL | OB-C608 |
| Dimensions | Length×640×910(mm) |
| PCB Width | 50-350(mm) |
| Speed | 0-1000(mm)/Min |
| Platform Material | ESD Rubber Mat |
| Weight | Approx.55Kg |
High speed LED mounter: Group picking and group placing; 30nozzles. Special for the LED tube ,LED strip large quantity production.
| Model | OB-G13 |
| Dimensions | 2700(L)*1700(W)*1400(H) |
| PCB size | 1200MM(L)*250MM(W) |
| Operation system | Windows XP |
| Chips | up 1206, 2835,3014,3528,LED tape chips. |
| Mounting precise | ± 0.02mm Chip. |
| Feeder qty | 30pcs.(8mm feeder) |
| Production qty | 110000-120000 points/hour |
| Weight | Approx.1700kgs |
8 zones reflow oven: It is used for LED production,after the LED mounter.
| Model | HS-0802-LF |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Conveyor speed | 0～2000mm/Min |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
Welcome to contact us to get more information,we will reply ASAP!
