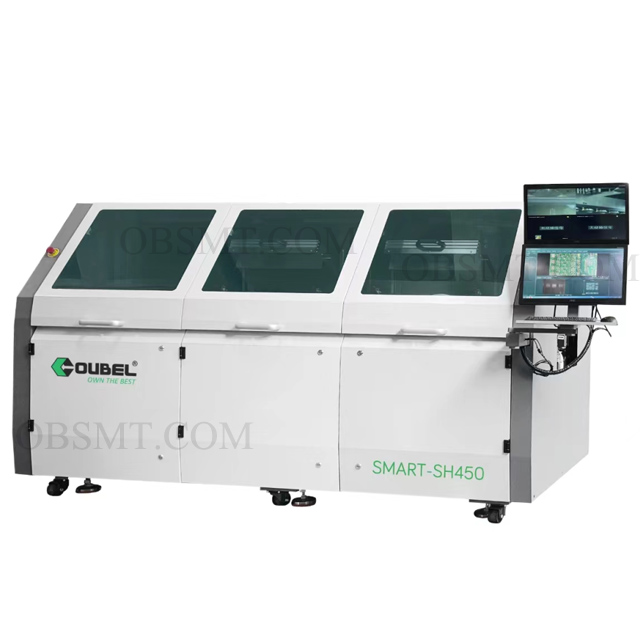

Model: SMART-FLOW450
Brand: OUBEL
Delivery Time: 30 working days
Selective Wave Soldering Pot
PLC+PC controller.
Spraying,Preheating and welding units in one machine.
Features
1.Independent research and development of electromagnetic pump;
2.Chain and roller hybrid drive system;
3.Automatic rail width adjustment system;
4.High precision spray nozzle;
5.Infrared preheating at the bottom and hot air preheating at the top;
6. Support online/offline programming, easy programming;
7.PCB double-sided welding;
8.Welding parameters can be set independently for each solder joint, and the whole welding state can be displayed;
9.Stable peak height, very low maintenance rate;
10.Special material nozzle (can be used for 3 months), easy to remove and replace the nozzle;
Specifications
Model | SMART-FLOW450 | |||||||
Overall dimension(mm) (Not include the keyboard, indicator light and monitor) | 2710(L)*1670(W)*1630(H) | |||||||
Weight | Approx.2000kgs | |||||||
Max.PCB Size | 510(L)*450(W) | |||||||
Min.PCB Size | 120(L)*50(W) | |||||||
PCB Top Side Clearance | 120mm | |||||||
PCB Bottom Side Clearance | 60mm | |||||||
PCB process edge | ≥3mm | |||||||
Conveyor Height From Floor | 900±20mm | |||||||
PCB Conveying Speed | 0.2-10m/min | |||||||
Max PCB Weight | ≤5kgs | |||||||
PCB Thickness With Jig | 1-6mm | |||||||
Conveyor Width Adjustment Range | 50-450mm | |||||||
Conveyor Width Adjustment Mode | Electric | |||||||
PCB Conveying Direction | L-R | |||||||
Air Input Pressure | 0.6Mpa | |||||||
Nitrogen Supply | Offered by customer | |||||||
Nitrogen Input Pressure | 0.6Mpa | |||||||
Nitrogen Consumption | 1.5m³/h | |||||||
Required Purity of Nitrogen | ≥99.999% | |||||||
Supply Voltage | 380VAC | |||||||
Frequency | 50/60HZ | |||||||
MaxPower Consumption | <28kw | |||||||
Max Current | <56A | |||||||
Ambient Temperature | 10-35℃ | |||||||
Machine Noise Level | <65dB | |||||||
Communication Interface | SMEMA | |||||||
Max.Soldering distance of Xaxis | 510mm | |||||||
Max.Soldering distance of Yaxis | 450mm | |||||||
Max.Soldering distance of Z axis | 60mm | |||||||
Min outer diameter of nozzle | 5.5mm | |||||||
Nozzle inner diameter | 2.5-10mm | |||||||
Max soldering wave height | 5mm | |||||||
Solder pot capacity | Approx.13kg(Sn63pb)/Approx.12kg(lead-free) | |||||||
Max soldering temperature | 330℃ | |||||||
Soldering heating power | 1.15kw | |||||||
Preheat temperature range | <200℃ | |||||||
Heating power | 24kw | |||||||
Top side preheating | Hot air | |||||||
Max.stroke of Xaxis | 510mm | |||||||
Max.stroke of Yaxis | 450mm | |||||||
Spray height | 60mm | |||||||
Location speed | <400mm/s | |||||||
Fluxbox capacity | 2L |
