Model: OB-P06
Brand: OUBEL
Delivery Time: 5-7 working days
Multiple filtration, rapid purification, 43% less power than other similar products.

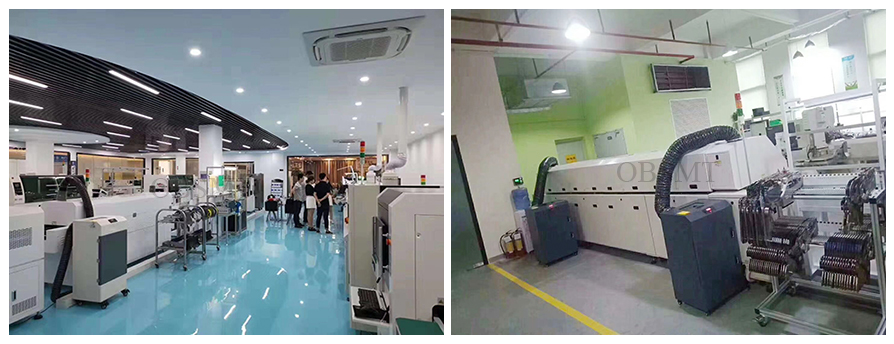

It suits for reflow soldering oven,wave soldering machine,laser carving, laser cutting and laser welding.

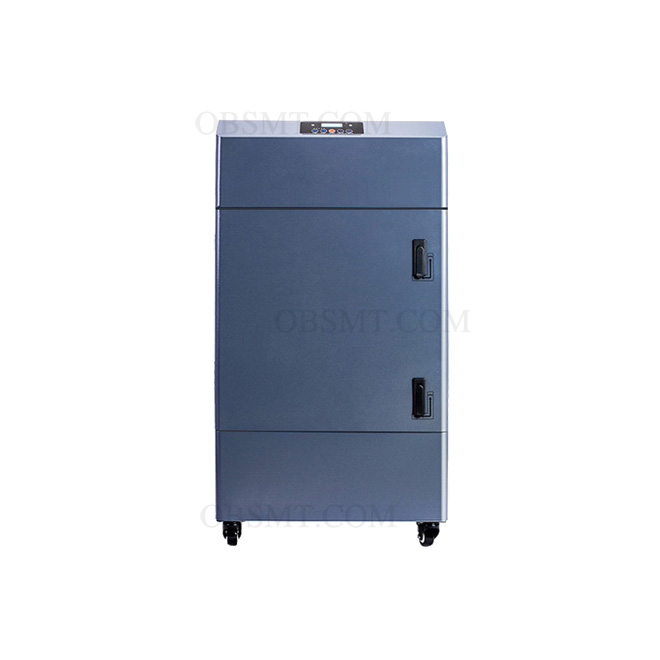

Reflow soldering fume purifier
Features:
1. Brushless motor, low noise, high speed, stable operation, long life, low power consumption, high efficiency (zero maintenance, zero material consumption).
2. Dual eddy fan design, fatigue resistance, smooth operation, low noise, high air volume, high suction force, high efficiency.
3. Installation of stepless speed regulator, remote control operation, air volume can be adjusted at will.
4. Multifiltration design ensures that toxic and harmful substances in smoke are filtered thoroughly and effectively protects the environment and human health.
5. All the filter elements can be replaced separately, which prolongs the service life of the filter elements and reduces the use cost of the filter elements.
6. The installation is simple and convenient, which is conducive to the neatness and beauty of the workspace.
7. It meets the CE certification of EU and is safe and reliable.
8. It conforms to the national air quality inspection certification.
9. All-metal frame structure can resist strong impact and vibration.
10. Install casters at the bottom for easy movement.
Specifications:
Model | OB-P06 |
input voltage | 110/220V 50/60HZ |
Noise | ≤75dB |
No-load speed | 2*6500R/MIN |
Output power | 700W |
Smoking tube | Length and diameter(customized) |
Single-port wind speed | 25M/S |
Air volume | 570 m³/h |
Dimensions | 550*415*1070mm |
Weight | 75KG |
Negative pressure | 3000PA |
