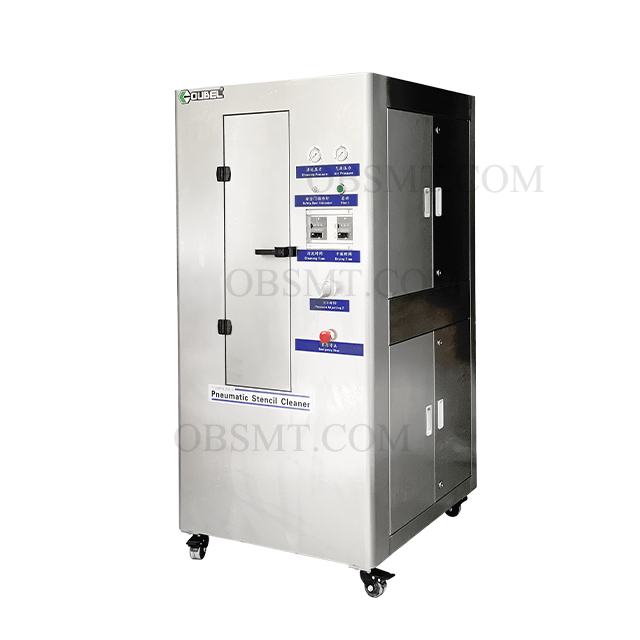

Pneumatic Stencil Cleaner

Model: OB-C750
Brand: OUBEL
Delivery Time:4-10 working days

Description

Pneumatic Stencil Cleaner is Used for cleaning solder paste, glue,etc
**E:sales@obsmt.com

Leave message

Leave message

Be the first to messgae “Pneumatic Stencil Cleaner”

Your email address will not be published.

Description

Pneumatic Stencil Cleaner

Features:

1.Used for cleaning solder paste, glue,etc

2.Stainless steel cabinet with good reliability and can resisit any hurt by acid and alkali cleaning chemistry.

3.Completely pneumatic operating without fire risk.

4.Cleaning in closed-loop which make lowest cleaning solvent consumption

5.Equipped with high precision tri-filtering system

6.Special design on air exhaust can reduce cleaning chemistry consumption

7.Good adaptability for compressor air

8.Cleaning and drying process can be easily control with one-button operation.

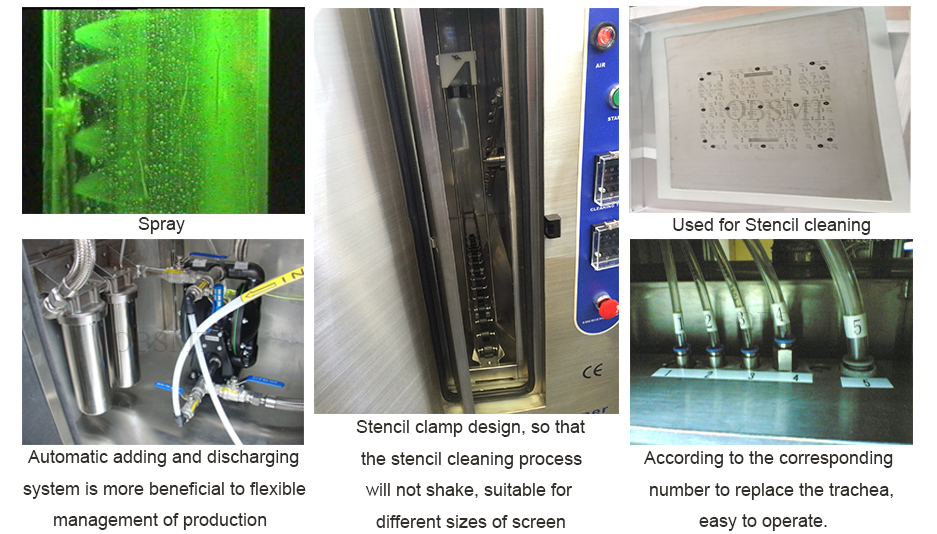

Details:

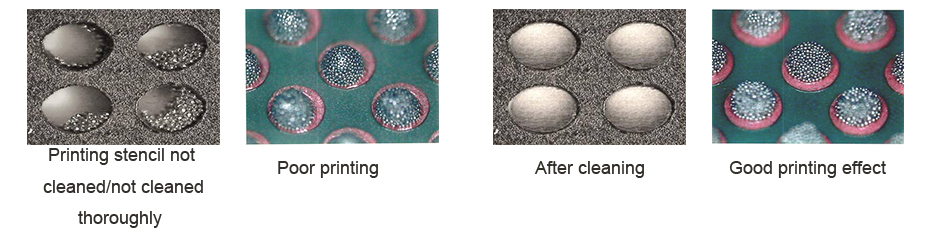

Result:

Specifications:

Model
OB-C750
Dimensions
L945 * W650 *H1645 (mm)
Use
stencil cleaner
Cleaning fluid
40L (max)
The best liquid use
35L
External gas
0.45Mpa ~ 0.7Mpa
Cleaning time
2-5 minutes (conventional process)
Drying time
2-5 minutes (conventional process)
Compressed air
400-600L / Min
Net weight
220KG
Material
Metal / Coil
