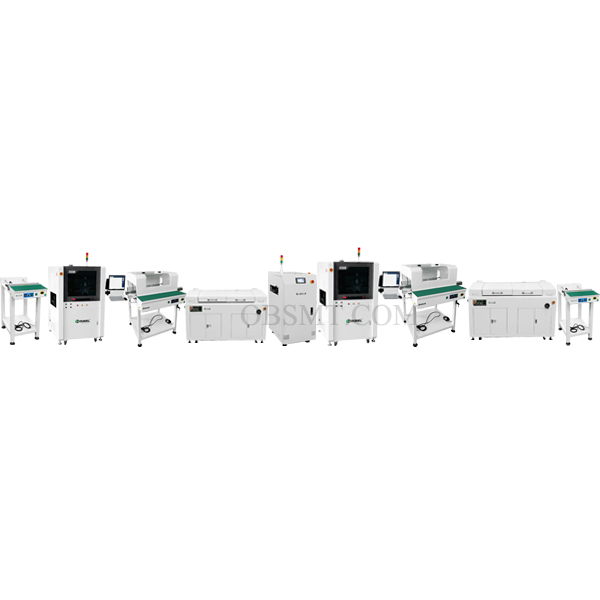

PCBA double sides conformal coating line
Brand: OUBEL
Delivery time: 15-30 working days
It used for double sides outdoor electronic products production,to realize Anticorrosion,dustproof,waterproof of PCB.

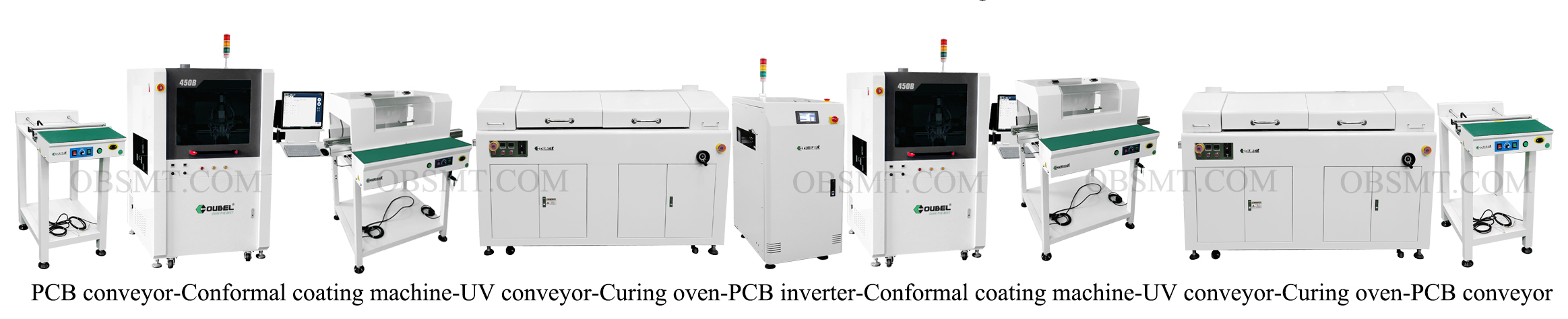

PCBA double sides conformal coating line
PCB conveyor: PCB conveyor connect the before and back machine to fulfill the automation. With SMEMA.
| MODEL | OB-C608 |
| Dimensions | Length×640×910(mm) |
| PCB Width | 50-350(mm) |
| Conveyor type | Belt conveyor |
| Speed | 0-1000(mm)/Min |
| Weight | Approx.55Kg |
Selective conformal coating machine: Selective conformal coating machine.Anticorrosion，Waterproof, Dustproof for PCB.
| Model | OB-GC450B |
| Dimensions (L*W*H) | 1300*1080*1800(mm) |
| Weight | 600KGS |
| Moving Parts | X,Y,Z axis sever motor driving |
| Conveyor speed | 0～2400mm/min |
| PCB Width | 50-450mm |
| Coating precision | Min coating width：5-15mm |
| Conveyor type | Stainless steel chain conveyor |
UV conveyor: PCB UV conveyor,After the conformal coating machine.Chain conveyor + Top cover UV light.
| Model | OB-C608D |
| Dimensions | Length*1050*900mm |
| PCB width | 50-350mm |
| Conveyor type | By stainless steel chain |
| Conveyor speed | 0.5-20M/min |
| Weight | Approx.80Kgs |
IR curing oven: IR curing oven is used for baking the PCB after the conformal coating machine.
| Model | OB-CO2000 |
| Dimensions | 2000*960*1250mm |
| PCBA width range | 50～400mm |
| Conveyor speed | 700～2000mm/min |
| Weight | Approx.450Kgs |
PCB inverter/flipper: Automatic PCB invertor is used for invert PCBs(180°) for double sides PCB process.
|
Model
|
OB-FC608
|
|
Dimensions
|
500*786*1200mm
|
|
PCB size
|
50*50-445*330mm
|
|
Weight
|
Approx.120KGS |
