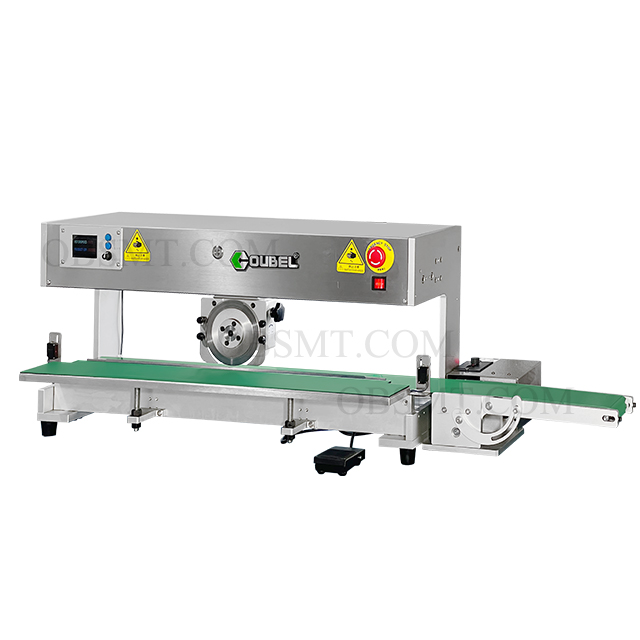

PCB V Cutter With Belt Conveyor

Model: OB-C668A
Brand: OUBEL
Delivery Time: 10 working days

Description

PCB V Cutter With Belt Conveyor

Automatic Counting Function

High Precision Blade V Cutting.

Leave message

Leave message

Be the first to messgae “PCB V Cutter With Belt Conveyor”

Your email address will not be published.

Description

PCB V Cutter With Belt Conveyor

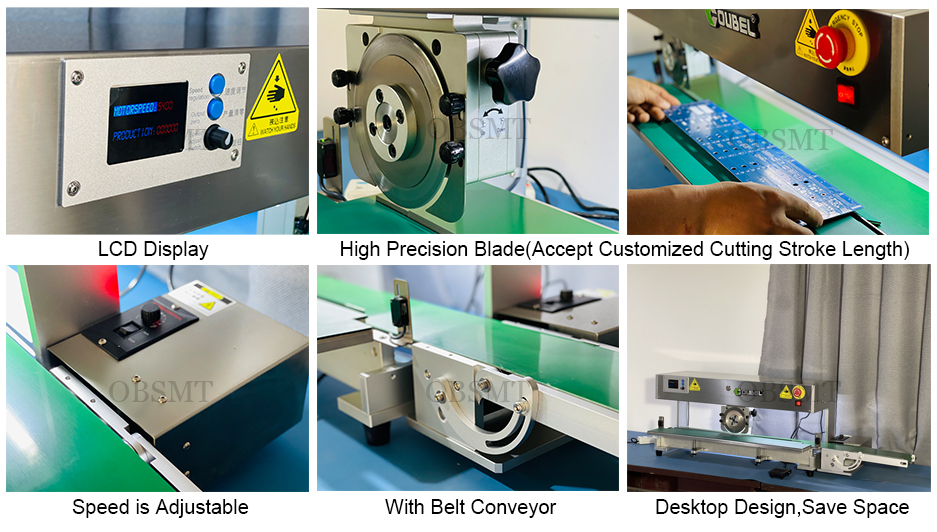

Features

1.Completely independently developed, controlled by microcomputer programs, with precise positioning and strong
stability. Cut a single board within 0-480MM length with one knife;
2.The cutting speed of the board can be adjusted to high or low, with speeds of500mm/S and 300mm/S.lfthe
cutting speed is fast, it can improve product quality without burrs or burrs;
3.Knife wheel travel:0-480mm (tool length can be customized). Fine adjustment of the upper and lower heights of the
cutting wheel: 0-2mm to adapt to various PCB board thicknesses, solving the problem of V-CUT slot depth on PCB
boards. Adjustable height of the control panel:0-50mm;
4.The cutting stroke can be set to a stop point according to the length of the board, which is manually set.

Specifications

Model OB-C668A
Machine size 765mm*365mm*410mm
PCB thickness 0.8-3.0mm
Cutting speed 300-500mm/s
Blade material SKD61 high-speed steel
Working temperature 10-35℃
Power source 220V/110V,50HZ/60HZ,150W
Weight Approx.32KG
