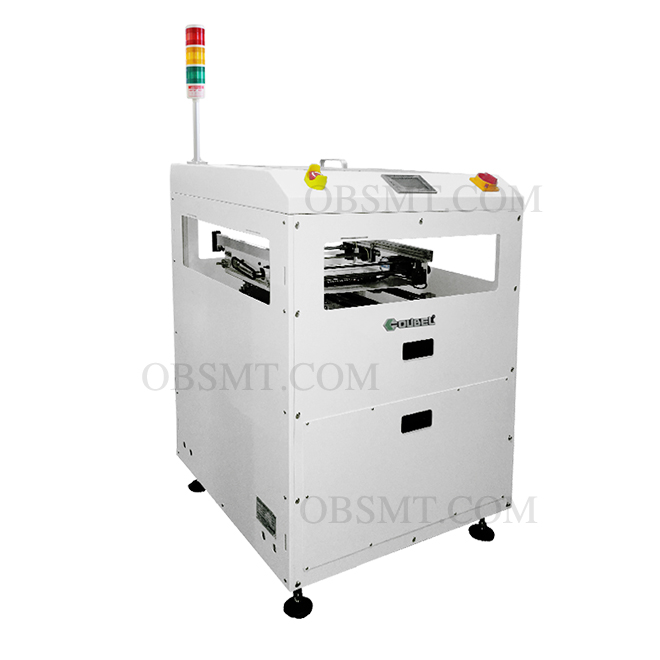

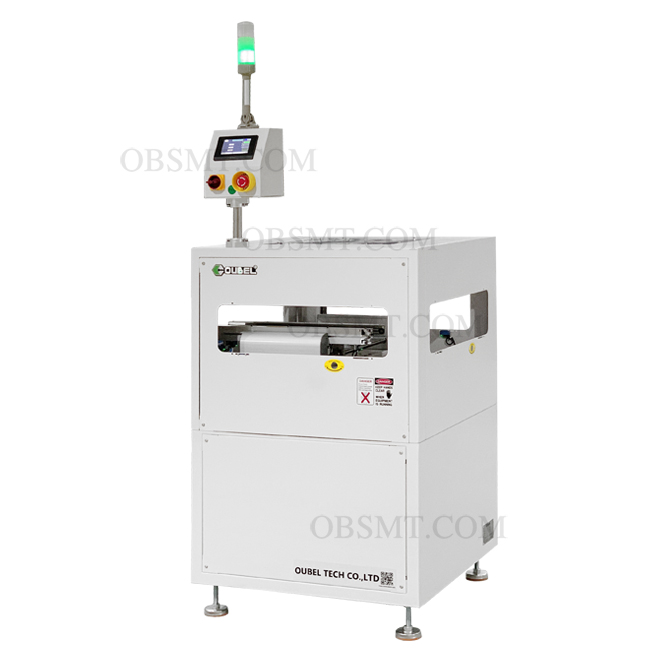

PCB Turn conveyor

Model: OB-ST250
Brand: OUBEL
Delivery Time: 4-7 working days

Description

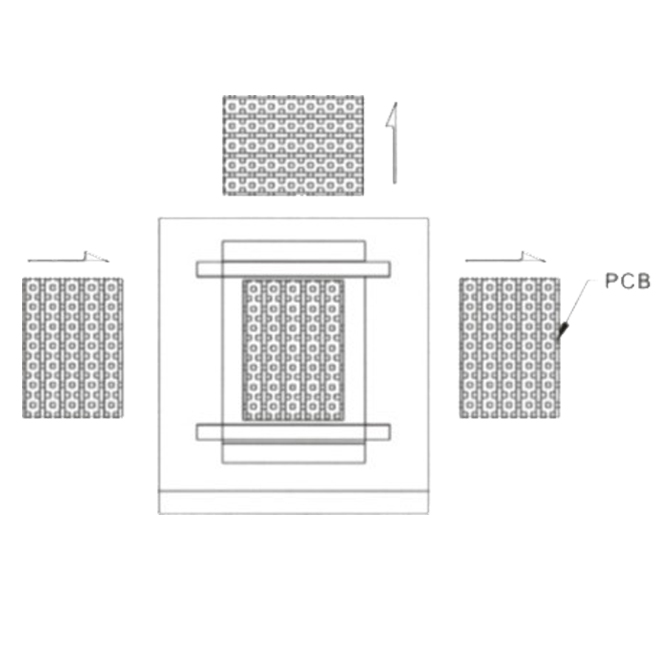

PCB Turn conveyor is used to redirect PCBs flow into different channels in a production line.(90°,180°,270°)
** E:sales@obsmt.com

Leave message

Leave message

Be the first to messgae “PCB Turn conveyor”

Your email address will not be published.

Description

PCB Turn conveyor

Features:

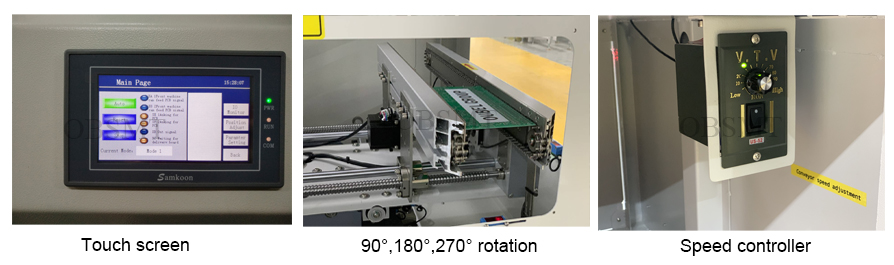

1.User friendly “soft touch” LED membrance control panel or touch screen is optional.

2.Enclosed design with built in torque limiter ensures highest level safety.

3.Top cover can be opened, it’s easy to make maintenance.

4.Smooth and parallel width adjustment (leadscrew).

5.Steady and precise rotation(Step motor).

6.Minimize transmission clearance between conveyor.

7.With SMEMA signal.

Details:

Specifications:

Model OB-ST250
Dimensions 500*563*1200mm
PCB size 50*50-330*250mm
PCB thickness Min.0.6mm
Conveyor height 900±20mm
Conveyor direction L-R or R-L (optional)
Rails fixed Front fixed or Back fixed
Cycle time Approx.18s
Power supply 1P 110V/220V 50/60 HZ
Power consumption Max.300VA
Air source 4-6bar,10L/min max.
Communication SMEMA signal
Weight Approx.180Kgs
