Automatic PCB surface cleaner

Model: OB-C650
Brand: OUBEL
Delivery Time: 7-20 working days

Description

Automatic PCB surface cleaner is used to clean the PCB , Strong ability to remove filth.
**E: sales@obsmt.com

Leave message

Leave message

Be the first to messgae “Automatic PCB surface cleaner”

Your email address will not be published.

Description

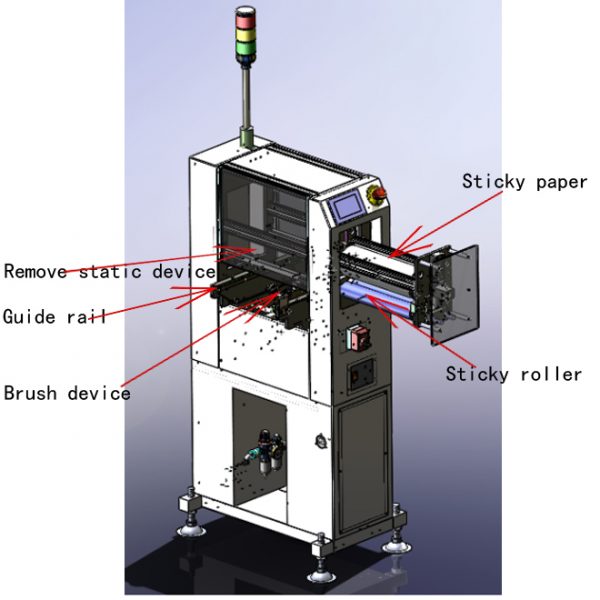

Automatic PCB surface cleaner

Features:

1.Strong ability to remove filth.

2.The ability to quickly remove the electrostatic.

3.In order to be able to slide the transmission stability and to prevent folding sheet.

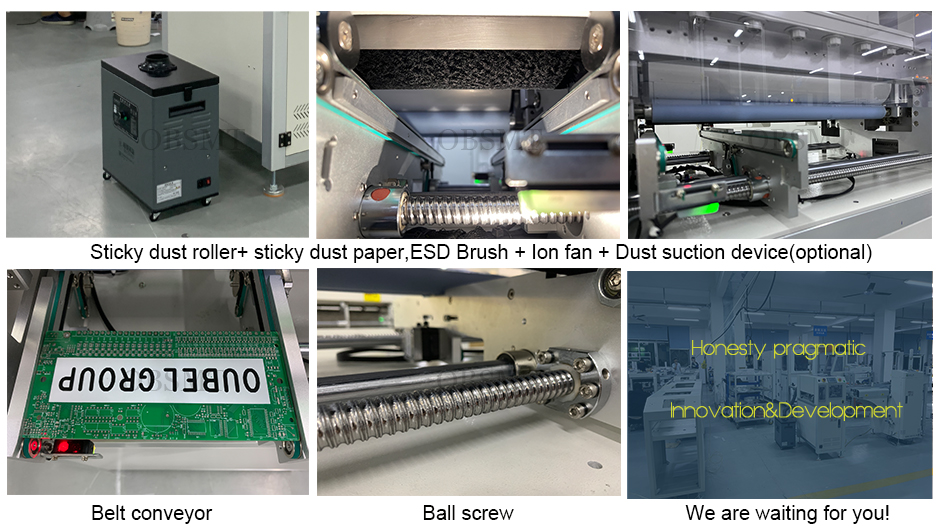

4.Sticky dust roller+ sticky dust paper.

5.ESD Brush + Ion fan + Dust suction device

6.Smooth and parallel width adjustment ( leadscrew ).

7.Small machine footprint.

8.With SMEMA signal.

Details:

Specifications:

Model OB-C650
Dimensions 500*700*1195mm
PCB size 50*50-445*350mm
PCB thickness 0.6-5mm
Drum speed 0-9m/min(adjustable)
Quantity of the rounds of sticky dust 2pcs
Qty of sticky paper dust 1pc
Cycle time Approx.8s
Power source AC 110V-220V 300V
Air pressure & consumption 4-6bar & 10L/min max.
Conveyor height 910±20mm
Direction L-R or R-L (optional)
Weight Approx.120KGS
