PCB NG OK Buffer Conveyor

Model: OB-MBC608-N
Brand: OUBEL
Delivery Time: 4-7 working days

Description

PCB NG OK Buffer Conveyor is used to transport the NG&OK board in the SMT line.
With SMEMA.

Leave message

Be the first to messgae “PCB NG OK Buffer Conveyor”

Description

Features:

1.PLC+LED touch screen control, easy to operate;

2.Use durable rollers for transmission (No need change belts);

3.Three modes of operation:FIFO （ first in first out）,LIFO （ last in first out）, PASS;

4.With back conveyor,transport NG&OK board with SMEMA;

5.Smooth and precise width adjustment (leadscrew);

6.Fast, smooth and precise search and location;

7. Full closed design ensures safety level of operation.

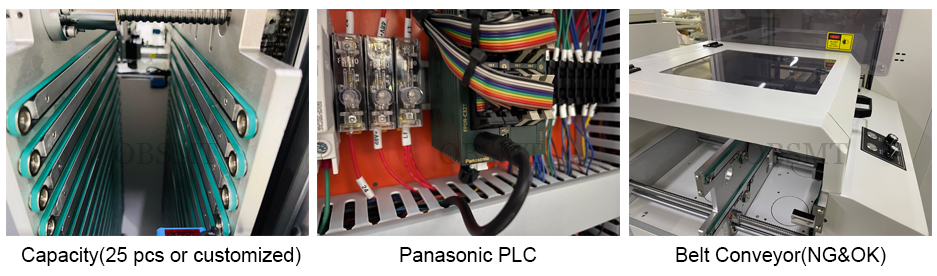

Details:

Specifications:

Model			OB-MBC608-N
Discription			It is used transport NG&OK board with SMEMA,with back conveyor
Dimensions			61011001250mm
PCB size			5050-530460mm
Circle time			About 10s
PCB capacity			25pcs( or customized)
Power			1P AC 110V/220V 50/60HZ
Power source			Max.250VA
Conveyor height			900±20
Conveyor direction			L-R or R-L
Weight			Approx.260KGS
