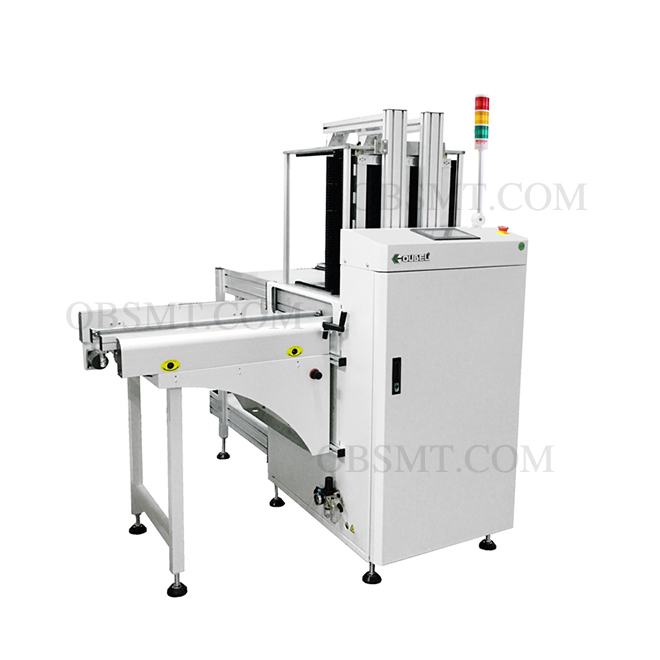

PCB magazine unloader
Model: OB-UL718
Brand: OUBEL
Delivery Time:4-10 working days
Description
PCB magazine unloader is used for unloading PCBs automatically in SMT&DIP production lines.
Panasonic PLC+ touch screen controller.
Pitch choose automatically (10.20.30.40mm).
Size is customized. With SMEMA signal.
SMT Handling system machines factory in China! Good quality,Good serive, competitive price!
**E:sales@obsmt.com
Leave message
Description
PCB magazine unloader
Features:
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.

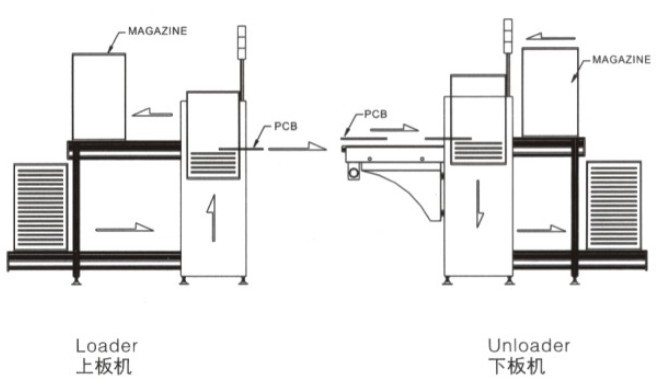

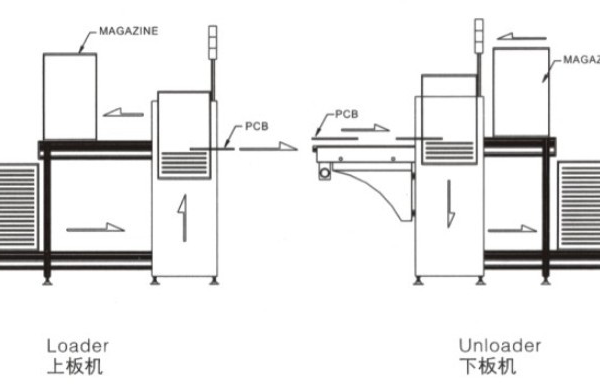

Details:
Specifications:
| Model | OB-UL718 | OB-UL718L | OB-UL718XL | OB-UL718XXL |
| Dimensions | 1730*765*1250mm | 2070*845*1250mm | 2660*909*1250mm | 2660*970*1250mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| PCB size | 350*50-250mm | 455*50-330mm | 530*50-390mm | 530*50-460mm |
| Power | AC 110V/220V 50/60HZ | |||
| Air supply | 5kgf/cm2 | |||
| Transport height | 900±20(mm) | |||
| PCB height | 0.4-8(mm) | |||
| Transport direction | L-R or R-L (optional) | |||
| Up/down pitches | 10-100(mm) | |||
| Communication | SMEMA signal | |||
| Repeatability | 0.05(mm) | |||
| Weight | Approx. 260KGS | Approx. 280KGS | Approx. 300KGS | Approx. 320KGS |
