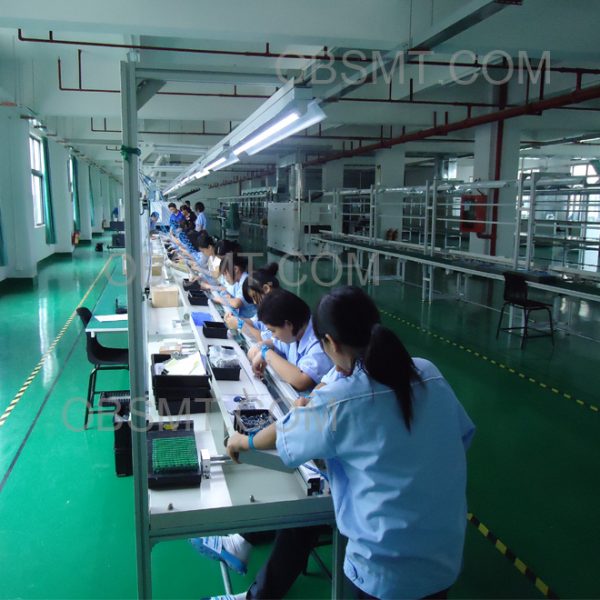

PCB Inserting line

Offer the whole line sollution :

Auto type :

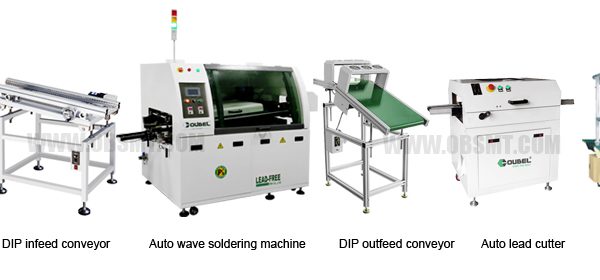

Auto DIP inserting conveyor–DIP infeed conveyor –Auto wave soldering machine –DIP outfeed conveyor with cooling fan–Auto lead cutter– Belt conveyor for test / repair

OBSMT DIP production lines

Manual type :

Auto inserting line–Manual flux sprayer–Semi-auto DIP soldering machine –Manual lead cutter –Belt line for test or repair

OBSMT Manual DIP production line

Specifications:

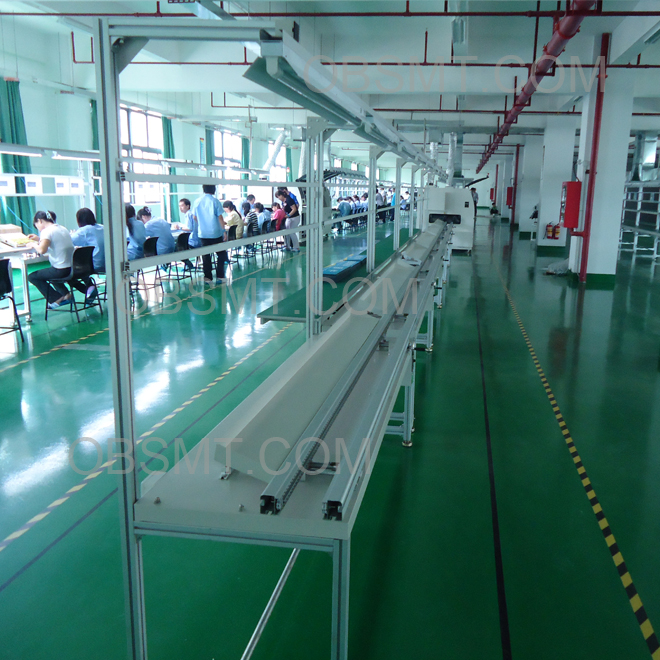

1. Structure: applies to the Internationale 40*40*1.2mm Aluminum material.
2. Motor: Applies to the Taiwan Weichuang , with 1:50 gearbox and electronic speed adjustment.
3. Double guide rail: applies to the 50*60mm special Alu groove, the width is adjustable (50-360mm).
4. PCB conveyor height 750±20MM
5. Working power: 200W.
6. Power: AC220V 1P
7. Light: the structure is applies to the Aluminum profile,with two groups of 40W*2 LED light ,controlled independently.
8. 3.5cent stainless steel nylon chain conveyor.
9. Surface treatment: steel plate, computer white treatment.
10. Electronic controlling box: 1 set of speed controller and switch.
11. With 3 pcs of A4 spectaculars, bottom is PVC board.
12. The plate is applies to the 1.5mm cooling board, the surface is the white computer, static treatment.
13. The components box applies to the 1.5mm stainless steel , there is 1 pc onto the before and after the guide rail.
14. 2400mm length, with light height :1950mm.
