PCB Cooling Buffer

Model: OB-MBC608A
Brand: OUBEL
Delivery Time: 4-7 working days

Description

PCB buffer is used between two SMD machine to buffer.
With SMEMA.

Leave message

Leave message

Be the first to messgae “PCB Cooling Buffer”

Your email address will not be published.

Description

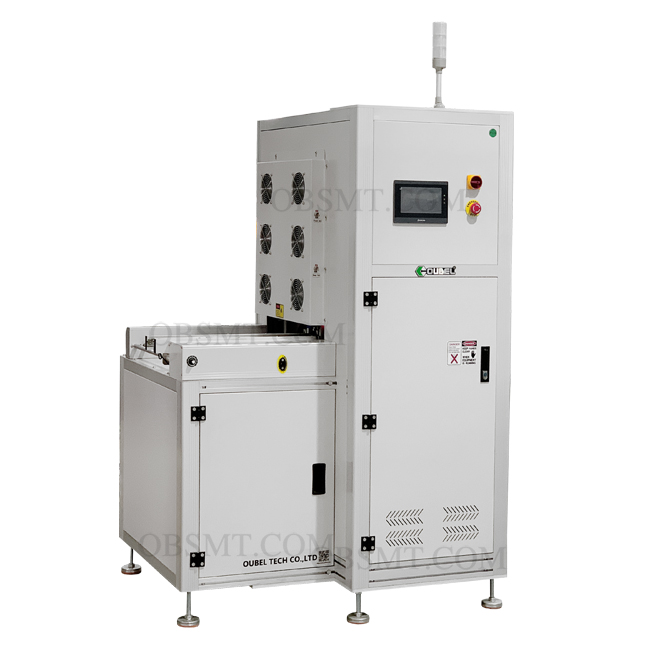

PCB Cooling Buffer

Features:

1.PLC+LED touch screen control, easy to operate.

2.Use durable rollers for transmission (No need change belts)。

3.Three modes of operation:FIFO ( first in first out),LIFO ( last in first out), PASS.

4.Smooth and precise width adjustment (leadscrew).

5.Fast, smooth and precise search and location.

6. Full closed design ensures safety level of operation。

7.With SMEMA.

Specifications:

Model OB-MBC608
Discription It is used between two SMD machine to buffer.
Dimensions 610*1100*1250mm
PCB size 50*50-460*460mm
Circle time About 10s
PCB capacity 25pcs( or customized)
Power 1P AC 110V/220V 50/60HZ
Power source Max.250VA
Conveyor height 900±20
Conveyor direction L-R or R-L
Weight Approx.260KGS
