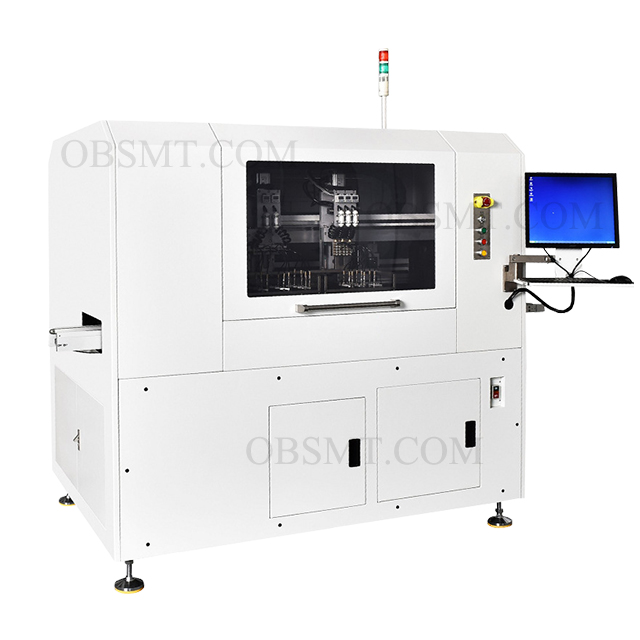

Online Milling Cutting Machine

Model:OB-MC800A

Brand:OUBEL

Delivery date:20-25 working days

Description

Online Milling Cutting Machine is Used for cutting PCB/LED board in SMT Production Line

Leave message

Leave message

Be the first to messgae “Online Milling Cutting Machine”

Your email address will not be published.

Description

Online Milling Cutting Machine

Features

1. PCB cutter replaces manual breaking, V-cut or PUSH cutting defects, effectively improving product quality and reducing external stress on products;

2.Equipped with high pixel CCD lens, auxiliary program teaching and editing functions, higher precision and more accurate;

3.Automatic MARK point positioning and correction system, real-time display of moving path and simulated path tracking, effectively improve the cutting accuracy;

4.Program left and right workbench replication, block replication, display, multi-angle connection plate replication, single-step tracking modification function, block editing and modification function, precisely simplify the program production time, improve editing efficiency;

5.High power imported fan vacuum cleaner and high voltage electrostatic elimination device, improve the effect of dust;

6.Tool life monitoring to extend milling cutter life.

7.Double platform cutting PCB board, reduce waiting time, effectively improve productivity.

Specifications

Type Online
Cutting precision ±0.1mm
Repeatability ±0.02 mm
Move Speed XY axis 1000mm/s, Z axis 800mm/s
Cutting speed 0-100mm/s
Maximum working range 300mm*350mm
PCB thickness 0.3-6mm
Applicable milling cutter size 0.8-3.0mm
Direction L-R/R-L
Power AC:220V±10% 50/60HZ 3.5KW
Vacuum cleaner dimensions 640*785*1760mm
Dimension 2014*1230*1650mm
Weight 1000kg
