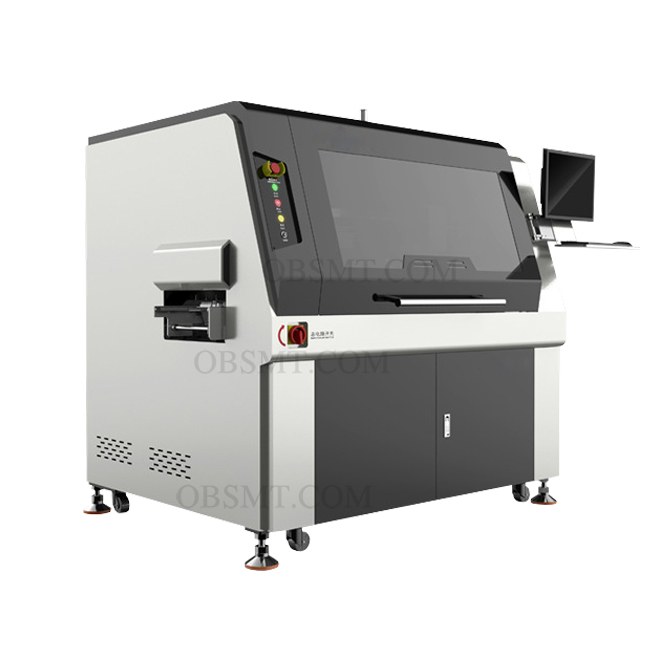

Online Curve Cutting Machine

Features

1. Double station processing platform, alternating left and right, reducing spindle waiting time and improving production capacity.

2. Double y-axis, servo motor + precision screw, more stable and safer than air cylinder.

3. The transmission mechanism of the equipment adopts precision module, high-precision screw rod and slide rail, with high precision and high speed.

4. It is equipped with high pixel CCD magnifying lens, flight shooting, auxiliary program teaching and editing functions, with higher precision and clearer image.

5. Automatic mark point finding machine vision function, high plate splitting accuracy.

6. The dust suction pipe moves with the spindle milling cutter to effectively remove dust (upper / lower dust suction mechanism is optional).

7. Including mechanism: automatic feeding mechanism, plate splitting mechanism, dust suction mechanism, manipulator picking and discharging mechanism and feeding mechanism.

8. MES or ERP connection port is selected to connect to the central database in real time.

9.Track height of the line body: 900mm at the feed end (plus or minus 20mm adjustable), 900mm at the discharge end (plus or minus 20mm adjustable).

10.The product is placed in the fixture for inspection to determine whether it is placed properly to avoid cutting the product.

Specifications
