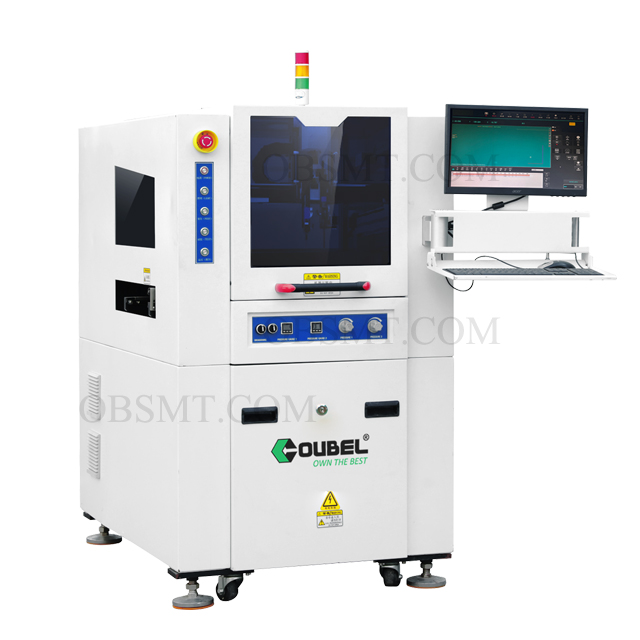

New Design Selective Conformal Coating Machine

Features:

1.Structure applies to the thickness steel ,much more stable, and no shaking .

2.Special marble platform, ensure the horizontal of the platform, hard enough and never be out of shape.

3.High speed,stable and reliable driving and controlling system. X.Y.Z.U axis moving all apply to the linearmodule which made by the Panasonic sever motor, high precise ball screw,linear guider rails.

4.Patent full sealed module,which can Isolate the fog corrosion of screw rod and slide rail.

5.Spray glue wave applies to the Germany newest technique,fog flower is like a fanned shape,width and pressure are adjustable, it can control the sides cleaning well.

6.With the waste gas collection,educator,which reduce the irritant gas discharge efficiently.

7.System can be renew to the selective coating machine.

8.Applies to the PLC control, Window XP system, easy to operate.

9.With the waste gas collection,educator,which reduce the irritant gas discharge efficiently.

10. With SMEMA.

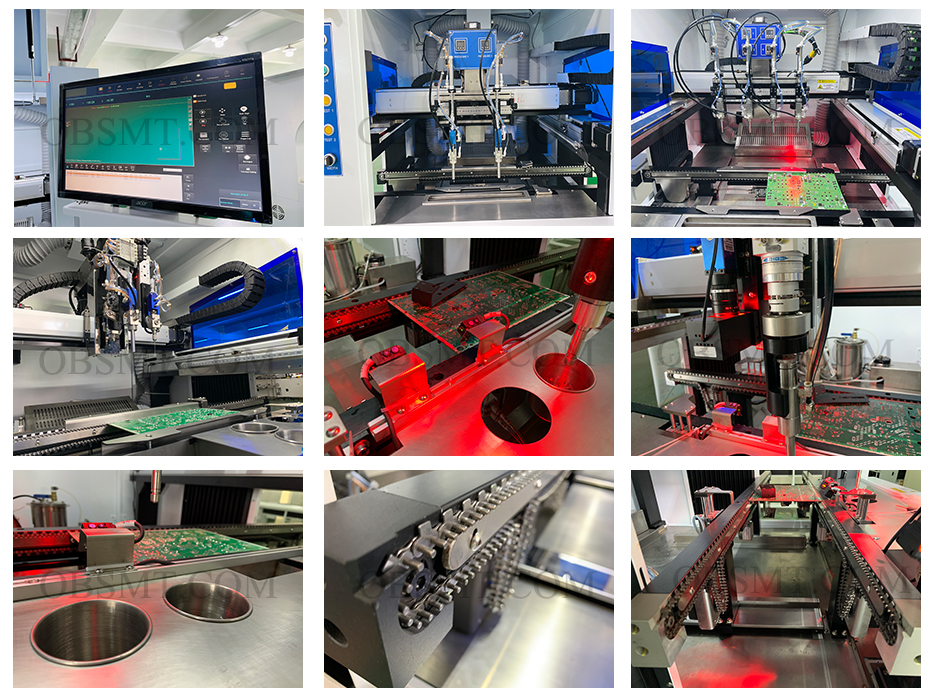

Details:

Specifications:
