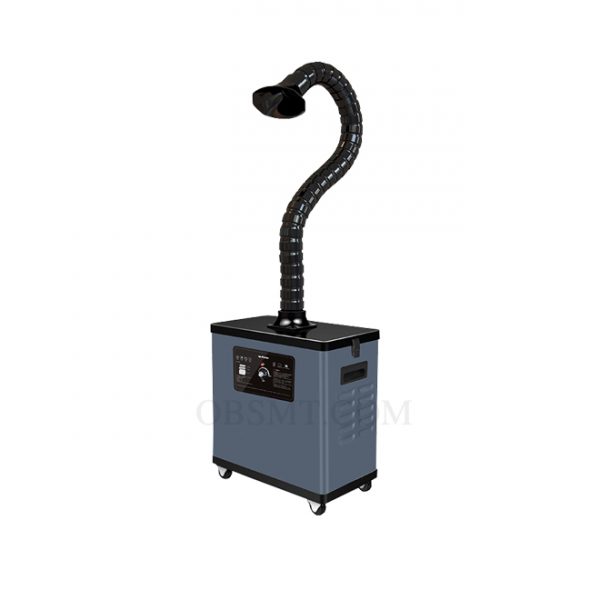

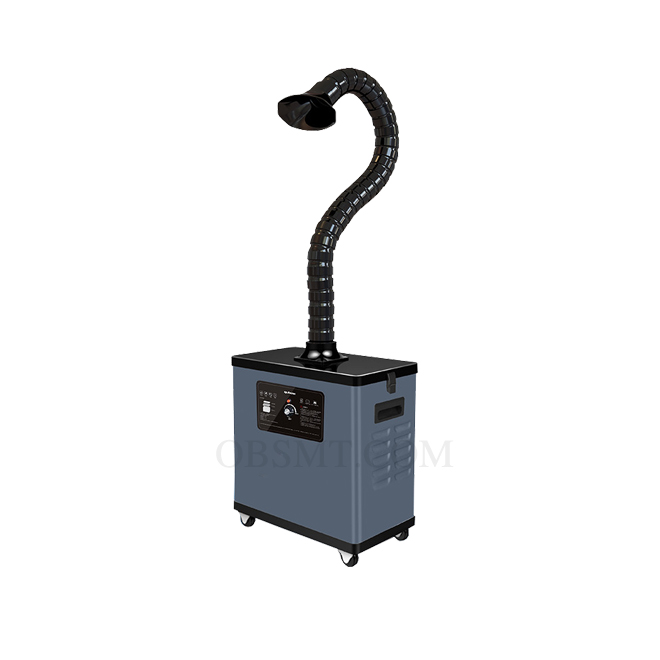

Mini Solder Smoke Purifier

Model: OB-P01
Brand: OUBEL
Delivery Time: 5-7 working days

Description

Multiple filtration, rapid purification, 300 nanometer pollutants purification rate of 90%.
It is suit for manual soldering,soldering robot,small tin furnace and hot air gun.

Leave message

Leave message

Be the first to messgae “Mini Solder Smoke Purifier”

Your email address will not be published.

Description

Mini Solder Smoke Purifier

Features:

1. The durability of the metal frame structure of the fuselage.

2. Microcomputer Chip Controlling Digital Display and Remote Control.

3. Failure alarm of filter element.

4. Multilayer Filtration, Rapid Purification.

5. Primary, medium and high efficiency filter elements can be replaced separately.

6. Maximizing the use of filters.

7. Noise reduction structure design to make working environment more tranquil and pleasant.

8. Universal Smoking Arm, Random Orientation and Location.

9. DC brushless motor with stable performance and long service life.

10. Three-year Maintenance of Main Engine.



Specifications:

Model OB-P01
Input Voltage 110/220V 50/60HZ
Noise <55dB
Air inlet and outlet interface external diameter:75mm
No-load speed 5800r/min
Power Consumption 80 W
Single-port wind speed 17m/s
System Flow 235m³/h
Dimensions 425*250*410mm
Weight 12.5kg
Static pressure 2000Pa
