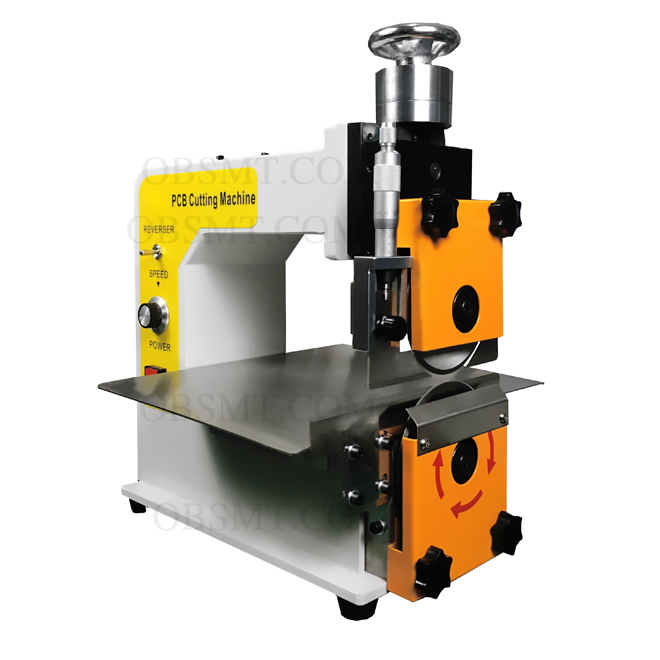

Manual PCBA V cutter

Model: OB-C668
Brand: OUBEL
Delivery Time: 3-5 working days

Description

Manual PCBA V cutter is using two round blades , PCBA V groove cutter. Economic type.

**E:sales@obsmt.com

Leave message

Leave message

Be the first to messgae “Manual PCBA V cutter”

Your email address will not be published.

Description

Manual PCBA V cutter

Features

1.Manual adjustment of guide level, solve the problem of V-CUT depth difference.

2.High efficiency: Vmax=200mm/s, and the speed is adjustable.

3.Machine segmentation reduces stress and prevents solder joints from cracking.

4.The machine is small and easy to operate.

5.The adjustment range of the upper cutter seat: 0 ~ 15mm.



Specifications

Model OB-C668
Dimensions 390*310*410mm
PCB thickness 0.6mm-1.6mm
PCB width limit Inner:Max.240mm; Out: no limit.
Chips height limit Upside: 20mm; Downside:10mm.
Cutting speed 0-200mm/s
Power 1P AC 110V/220V,50/60HZ
Weight Approx.35KGS
