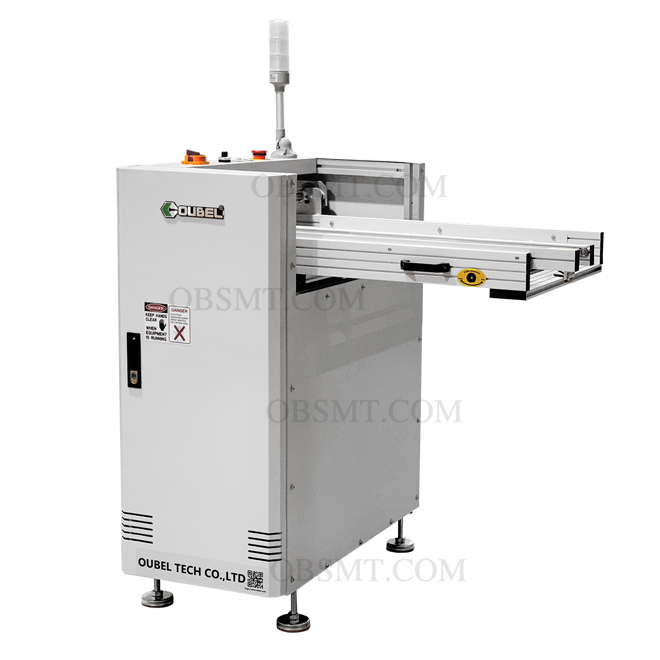

Manual lift gate PCB conveyor
Model: OB-GC608
Brand: OUBEL
Delivery Time: 4-10 working days
Description

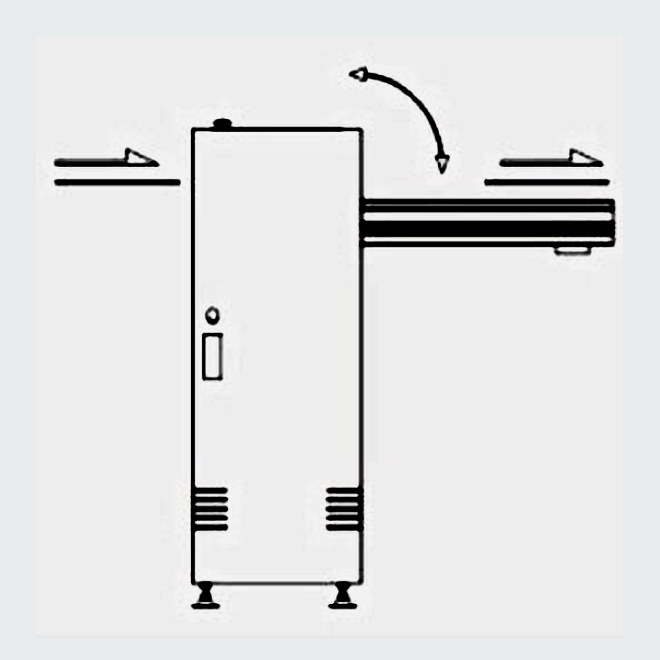

Manual lift gate PCB conveyor is used when a passage way is required in a production line.
**Contact: sales@obsmt.com
Leave message
Description
Manual lift gate PCB conveyor
Features：
1.Cylinder assisted lifting motion.
2.With pneumatic lock to enhance safety.
3.650mm passage way or specify.
4.Parallel and smooth width adjustment (leadscrew).
5.Safety sensor installed to enhance safety.
6.With SMEMA signal.

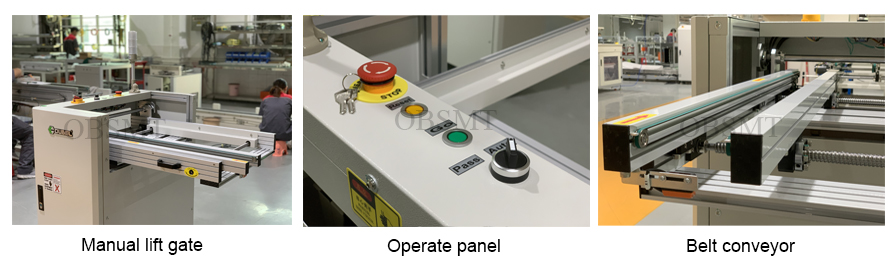

Details：
Specifications:
| Model | OB-GC608 |
| Dimensions | 1000*730*1050mm |
| PCB size | 50*50-445*330mm |
| Belt type | Flat belt |
| Conveyor speed | 0.5-20M/Min |
| Power | 1P AC 110V/220V 100VA Max. |
| Air source | 4-6bar, 48L/min max. |
| Conveyor height | 900±20mm |
| Conveyor direction | L-R or R-L |
| Weight | Approx.180Kgs |
