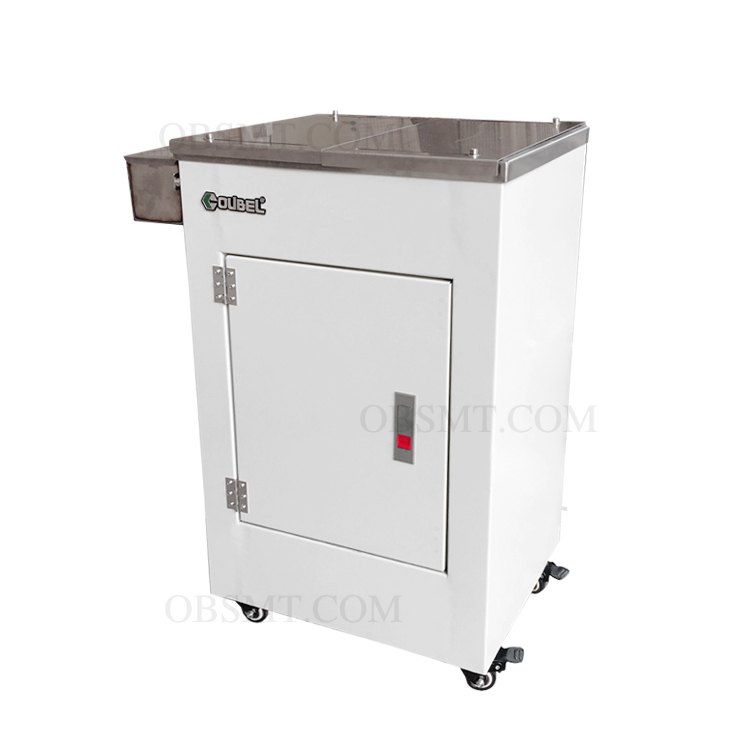

Manual flux sprayer
Model: OB-FS01
Brand: OUBEL
Delivery Time: 2-3 working days
Description
Manual flux sprayer.
By footswitch control. Weight: 10Kgs
Leave message
Description
Manual flux sprayer
Specifications：
| Model | OB-FS01 |
| Dimensions | 400*300*670mm |
| Tank size | 340*240*150mm |
| Power | 1P AC 220V 50/60HZ |
| Spray nozzle diameter | 1.3mm |
| Spray quantity | 0-360ml/min |
| Flat spray width | 200mm the top 200mm；300mm the top 320mm |
| Round spray width | 200mm the top diameter 70mm；300mm the top diameter 80mm |
| Atomization average particle size | 100um |
| The distance of the spray month to the PCB | 20-30cm |
| Weight | Approx.10Kgs |
