Flexible LED Strip Production Line

Brand: OUBEL
Delivery Time:20-30 working days

Description

LED Soft Light Bar Production Line,Professional LED whole line solution,Original factory,provide best service and high quality product for you!

Accept OEM&ODM,machine can customize according to your need,any question or need,welcome inquiry!

Leave message

Leave message

Be the first to messgae “Flexible LED Strip Production Line”

Your email address will not be published.

Description

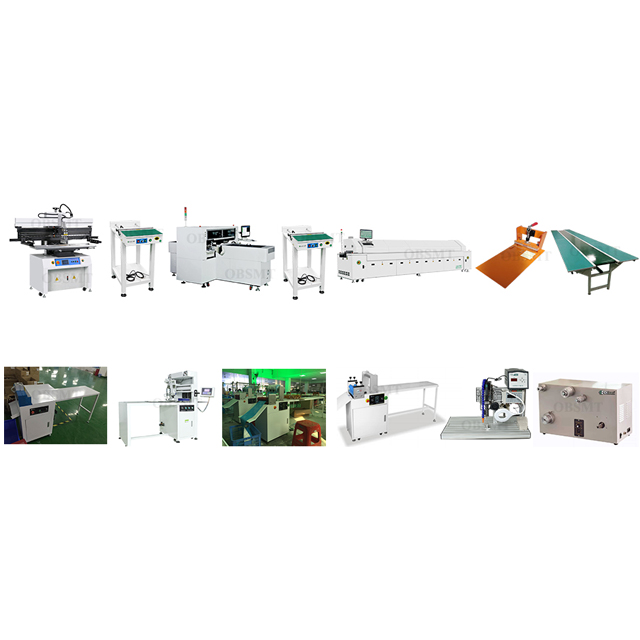

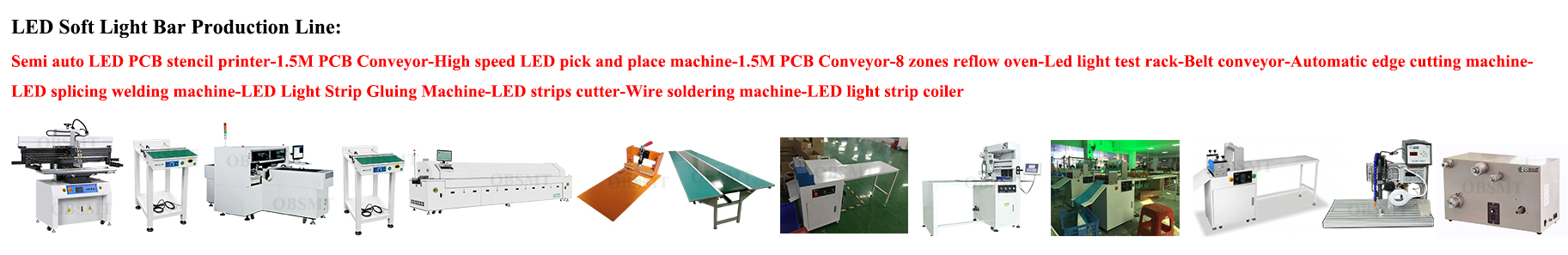

Flexible LED Strip Production Line

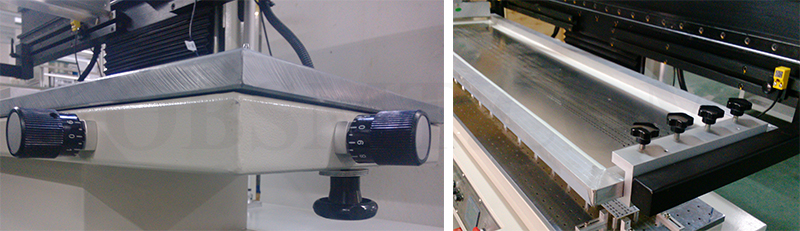

Semi auto LED PCB stencil printer:

Features:

1.PLC + touch screen display, more stable and easy to operate;

2.Applies to Korean guide rail,printing precise is up to 0.2mm IC;

3.Suitable for long LED PCB , such as 600mm/1200mm/1500mm length PCB(make to order).

Specifications:

Dimensions 1650*670*1550(mm)
PCB Size 300*1250(mm)
Printing speed 0~8000(mm)/Min
PCB thickness 0~100(mm)
Weight Approx.380Kgs

Details:

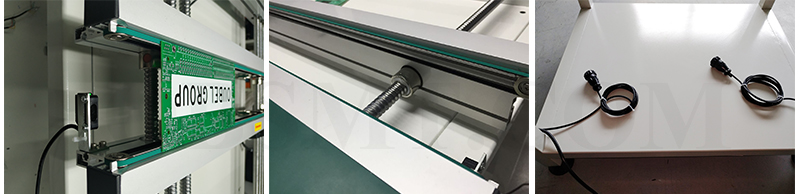

1.5m PCB Conveyor:

Features:

1.Width and speed is adjustable;

2.Size can customized according to your need;

3.Belt conveyor with SMEMA.

Specifications:

Dimensions 1500*640*910(mm)
PCB Width 50-350(mm)
PCB Direction L-R or R-L(optional)
Speed 0-1000(mm)/Min
Weight Approx.80Kg

Details:

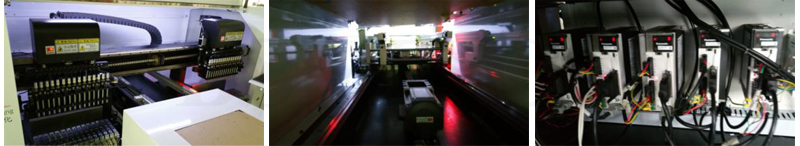

High speed LED pick and place machine:

Features:

1.Panasonic servo +Kuroda screw rod,higher precise!

2.With 5 sets imported camera,ensure the higher mouting precision;

3.A/B arms with 15 noozles each, CCD camara mark fixture.

Specifications:

Dimensions 2700(L)*1700(W)*1400(H)
PCB Size <1200MM(L)*250MM(W)
Production qty 100000-120000 points/hour (30 nozzles working at the same time)
Guide rail driving max. length 1.2M.
Weight Approx.1700KGS

Details:

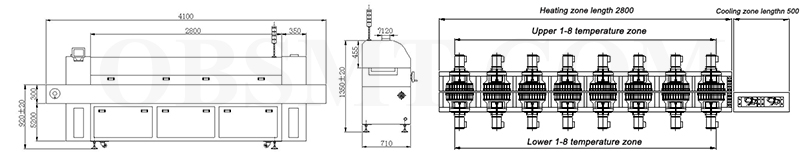

Reflow Oven :

Features:

1.The heating parts are imported high quality components to ensure the high stability and reliability of the system, and ensure a longer service life;

2.It adopts independent roller structure and flat support, combined with supporting stainless steel mesh belt, with stable operation and accurate speed of ± 20mm / min;

3.Delayed shutdown protection function, uniform cooling after shutdown to prevent deformation of transmission parts due to uneven cooling.

Specifications:

Dimensions 4100 mm *710 mm *1350mm
PCB Size 50-350mm
Transmission mode mesh
Temperature setting range Room temperature–300℃
Weight Approx.800Kgs

Details:

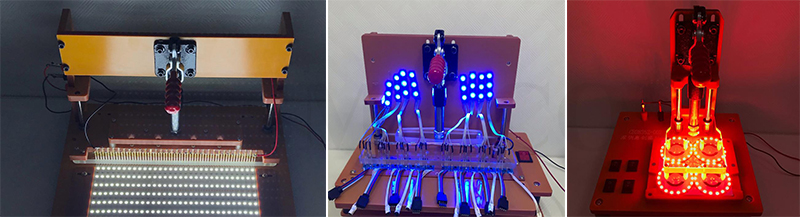

Led light test rack :

Features:

1.Materials: black electric board, red electric board, transparent acrylic board, glass fiber,POM, aluminum alloy, aluminum and other anti-static materials;

2.COB LED intelligent lightless strip test;

3.”Probe” are all domestic and Taiwan brand probe, Huarong probe/Taiwan Ying Steel/service life at least 100,000-200,000 times.

Details:

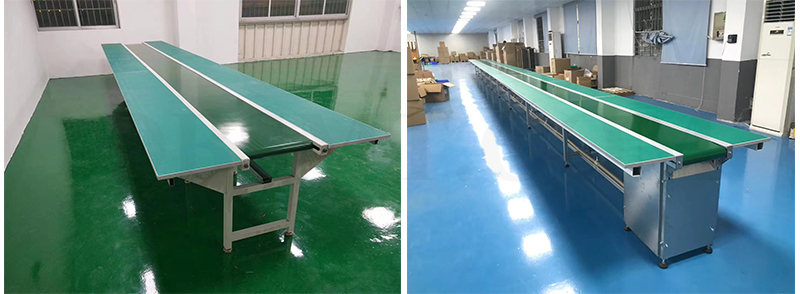

Belt Conveyor :

Features:

1.Can customize different width, color, material type of belt, such as PCV,pu, and so on;

2.High quality governor, adjust the running speed of conveyor belt, simple and convenient, quality assurance;

3.Base caster, with brake design, strong stability, easy to move, according to customer needs to choose the use of fixed pad.

Specifications:

Dimensions Customized
Transmission capacity 0~10(t/h)
Type Belt Conveyor
Power 0.6~2.25(KW)
Transmission distance 0.5-100(m)

Details:

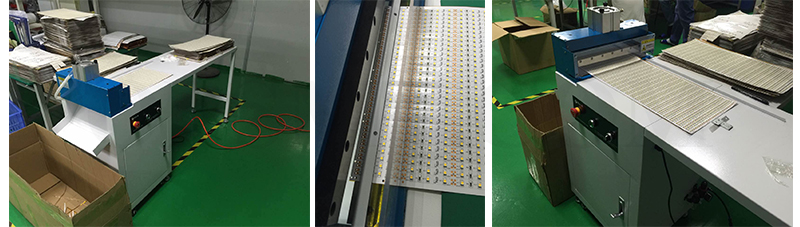

Automatic edge cutting machine :

Features:

1.High efficiency: 10000M/h, about 900 panels;

2.Easy to operate: for lamp bead positioning, it is convenient, fast and efficient, and can be operated by one person;

3.Wide application: one unit with multiple functions, suitable for mainstream FPC board, including: soft light strip, S-shaped light strip and panel lamp.

Specifications:

Dimensions L1500*W350*H900MM
Production quantity 10000M/h, about 900 panels
Air source 0.4-0.65Mpa
Power supply 220V 50-60HZ
Power 100W

Details:

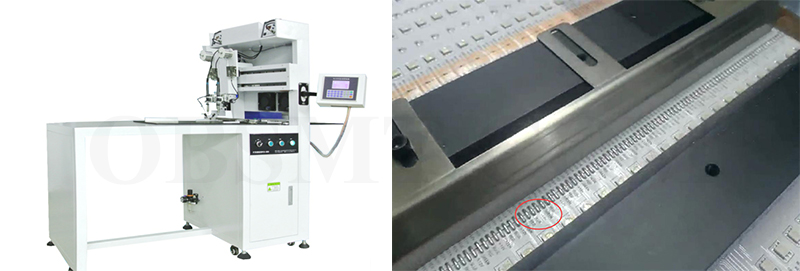

LED splicing welding machine :

Features:

1.Production efficiency: according to the number of solder joints solder joints size calculation, welding speed 1000-2200 m /H;

2.According to the different solder joint arrangement, the whole large copper and iron head is professionally customized, so that the heating is faster and more uniform;

3.Add smoke exhaust system, prevent artificial inhalation of toxic gas, the system can be directly connected to the smoke exhaust pipe.

Specifications:

Dimensions 1600*1200*1400mm
Repeatability ±0.05mm
Work range X axis 350MM, Z axis 150MM, platform 1000MM
Power 600W
Weight 100kgs

Details:

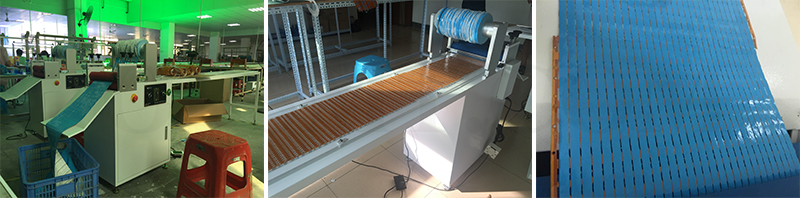

LED Light Strip Gluing Machine :

Features:

1.High efficiency: take 5M soft light bar as an example, production capacity of 5000m per hour;

2.High quality: the double-sided adhesive tape is not biased or arched, and the qualified rate of the product reaches 99%;

3.Wide application: one machine with multiple functions, suitable for a variety of LED adhesive products.

Specifications:

Dimensions L1800*W400*H1100MM
Power supply 220V  50-60HZ
Power 40W
Brand OUBEL
Weight 70KG

Details:

Soft Light Strip Dividing Machine :

Features:

1.According to the characteristics of LED soft light strip, the edge of the divided circuit board is flat and smooth, and the board surface is very flat;

2.Original imported bearings, precision machined gearbox and supporting parts ensure perfect cutting quality, reduce machine wear and prolong service life;

3.Customize the mold according to the plate width to ensure the uniformity.

Specifications:

Dimensions 1100*660*1000mm
Board feeding speed Stepless speed regulation, maximum 300mm/s
Power 120w
Board materials LED soft light strip products
Weight 100KG

Details:

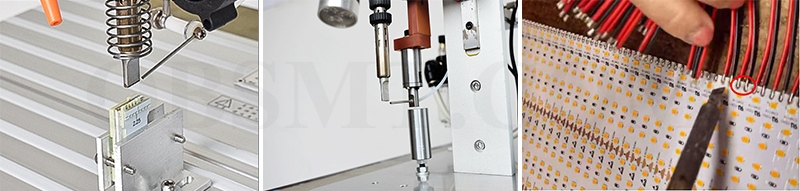

Wire soldering machine :

Features:

1.Semi-automatic soldering machine, intelligent control, integrated with gas and electricity;

2.LCD control,Temperature controller, accurate display temperature;

3.Automatic tin feeder, fast and noiseless.

Specifications:

Dimensions 400*300*300mm
Working Content Soldering
Material Aluminum alloy
Power 150w
Weight 20kgs

Details:

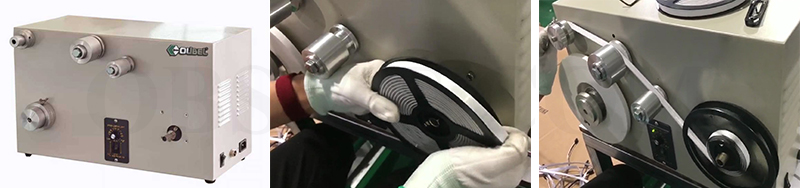

LED light strip coiler :

Features:

1.All light strips with a width of 0-25mm can be pasted with 3M glue synchronously. And synchronize the reel;

2.After employees are familiar with it, the output per hour can reach 1000m / h;

3.According to different packaging requirements of customers, forward rotation and reverse rotation can be carried out (forward rotation: normally put the lamp beads outside, reverse rotation: pack the lamp beads inside).

Specifications:

Dimensions 450*250*290mm
Power supply 220V,50-60HZ
Working power 15W
Brand OUBEL
Weight 8 KG

Details:

Professional LED&PCB Whole Line Solution,OUBEL is the best choice!
