LED Lens Mounter
Model: OB-M08I
Brand: OUBEL
Delivery Time:20-25 working days

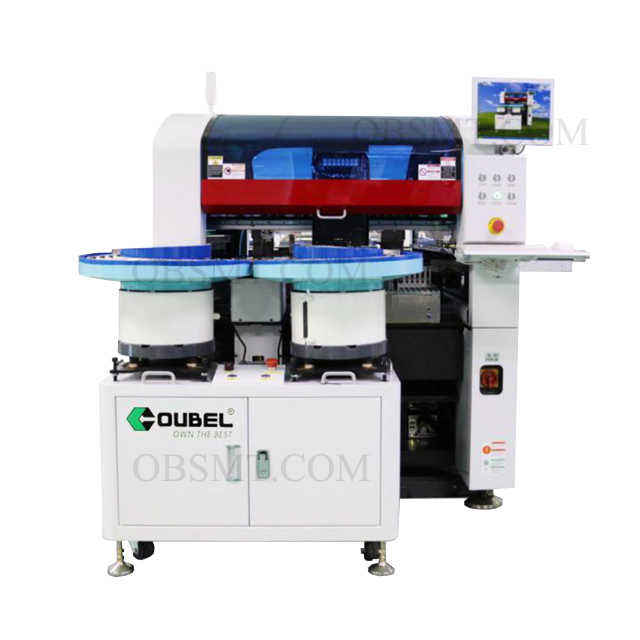

High Speed LED Pick And Place Machine,with 8 heads,suitable for LED PCB production line.
LED Lens Mounter
Features:
1.Applies to the Japan Yamayo linear motor enables the equipment to achieve higher accuracy, faster speed and lower wear;
2.Applies to the German advanced industrial linear scanning camera realizes zero time difference, zero pause and high precision component identification;
3.High precision thermal compensation system realizes real-time monitoring of mounting accuracy and automatic correction;
4.Automatic switch of suction nozzle to realize simultaneous compatibility of various components;
5.Electric feeder ensures more accurate feeding and solves the problem of unstable feeding and component discarding;
6.8-channel independent research and development of high-end vibration feeding system;
7.Chinese- English software, easy to operate;
8.Suitable for LED lens or other chips mounting.
Specifications:
|
MODEL
|
OB-M08I
|
|
Dimensions
|
2000mm×2350mm×1550mm
|
|
Mounting speed
|
26000CPH
|
|
Mounting precision
|
±0.05mm
|
|
PCB Size
|
50*50-1200*460mm
|
|
PCB thickness
|
0.6-3.0mm
|
|
PCB weight
|
0.68KGS
|
|
Lens size
|
5-30mm
|
|
Mounting head
|
8
|
|
Feeder capacity
|
16 stations (feeder bow is optional)
|
|
Feeder size
|
8-56mm
|
|
Suitable chips
|
0201-30mm IC BGA , resistance ,capacitor
|
|
Clamp method
|
By side and By up and down clamp
|
|
Power supply
|
3P 380V 50/60HZ
|
|
Positioning method
|
By camera
|
|
Air source
|
0.5-0.8MPa
|
|
Controller
|
Windows 7
|
|
Weight
|
Approx. 1900Kgs
|
