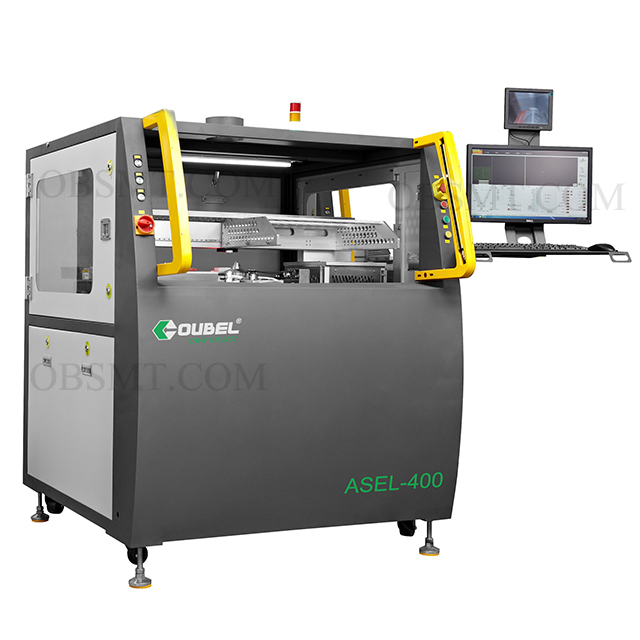

High Quality Selective Soldering Machine ASEL-400

Features

1. The piezoelectric ceramic jet valve originated in Germany is selected, which is suitable for flux with solid content less than 5%,computer control or manually adjust switch, precise control the spray time, spray speed, economy and environmental protection, digital FLUX flow, spray flow, angle, density, width and other parameters can be recorded;

2.User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders,economy functions, emergency manual transmission function and tool-free maintenance, reduce equipment failure rates;

3.Core components: using imported components to ensure long-term stability of equipment operation;

4.It can control the solder quantity, soldering time and solder quantity of each solder spot;

5. Program creation is simple, using pictures or Gerber data to make production program;

6.Nozzle can be selected according to the size of soldering point, and there is no need for fixture to protect non solder parts;

7.PCB pictures can be directly used for path programming. The path starting point, soldering moving speed, empty stroke speed, z-axis height and wave crest height can be set on the computer;

8.The piezoelectric ceramic jet valve originated in Germany is selected, which is suitable for flux with solid content less than 5%;

9.Flux is stocked by pressure tank, make sure pressure stable without influenced of amount of flux. The nozzle jam detection function is optional;

10.Bottom preheating is standard equipped in machine, Position is adjustable.IR heater of Top,Efficient and stable IR heat conduction.Design structure for maximizing preheating area.All round high temperature cotton design to ensure temperature stability.Heat-generating and heat-conducting parts and motors adopt top brands.Maintenance plug-in design. tool-free maintenance mode;

11.XYZ platform is composed of high precision ball screw and high-speed motor;

12.Electromagnetic pump coil adopts German imported brand to ensure the stability and reliability of the peak;

13.Solder temperature, N2 temperature, wave height, wave calibration etc all able to set in software;

14.Solder pot is made of Ti, not leakage. With cast iron heater outside, robust & quick heat up;

15.N2 online heating system, to wet the soldering perfectly and reduce the solder dross;

16.Standard with the nozzle automatic cleaning function. How many panels can be set to clean the nozzle.
