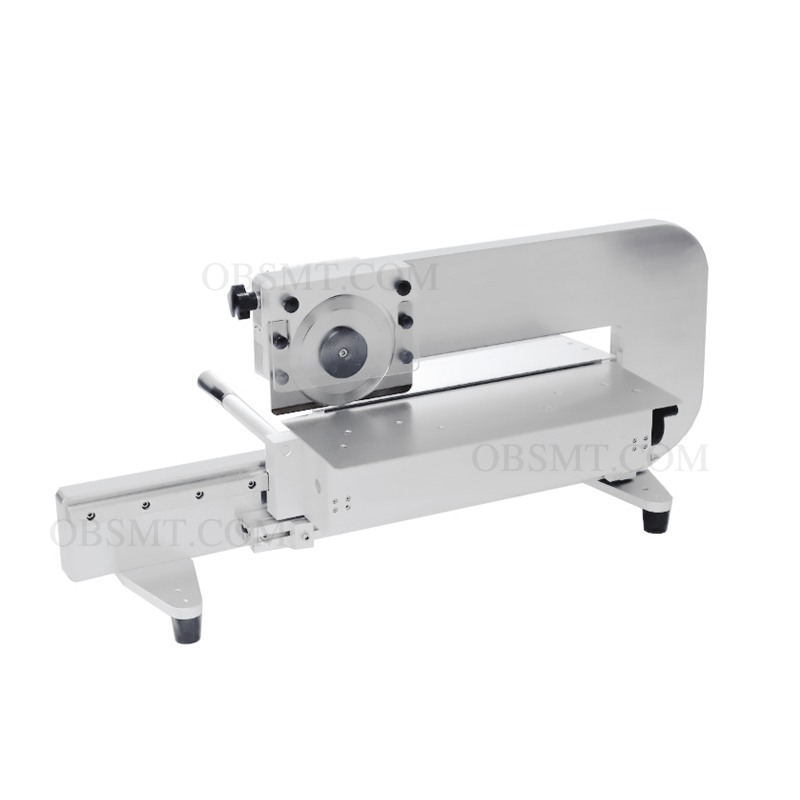

Manual pusher PCB V cutter

Model: OB-C668G
Brand: OUBEL
Delivery Time: 4-7 working days

Description

Manual pusher PCB V cutter,
Up round blade,
Suitable for SMALL SIZE PCB.

Leave message

Leave message

Be the first to messgae “Manual pusher PCB V cutter”

Your email address will not be published.

Description

Manual pusher PCB V cutter

Features

1.Sliding speed of blade is adjustable manually

2.Accurate adjustment on Distance between circular blade and straght blade, due to different depth of V-slot

3.Compatible to situation that component accross the V-slot

4.Minimize internal pressure to avoid solder crack.

5.Professionally Designed Hand Push Manual PCB Cutter PCB V-cut Machine for FR4 board.

Specifications

Model

OB-C668G
Max Cutting Length

350mm

Cutting Thickness

1.0 to 3.5mm

Cutting Speed

0 to 400mm/s

Equipment Dimension

820 x 380 x 350mm
Operation Type

Manual

Gross weight

50KG

Blade Customization

Available
