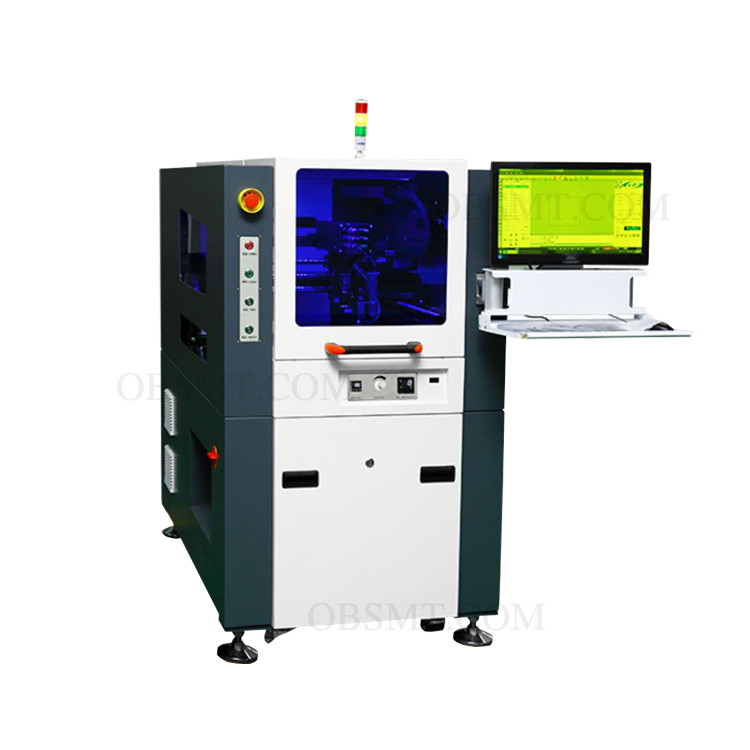

High end Automatic glue dispenser machine

Model: OB-HT700H
Brand: OUBEL
Delivery Time: 20-25 working days

Category: Glue dispense machine

Description

Automatic glue dispenser machine , with X.Y.Z axis .

Panasonic PLC + PC controller.

Leave message

Be the first to messgae “High end Automatic glue dispenser machine”

Description

High-end automatic glue dispenser machine

Features

1.PC control, Windows XP operation system.Auto alarm and menu display function.

2.CCD visual position system.

3.Servo motor+ ball screw drive.

4.Automatic nzzle constant temp. system , which ensure the consistence of the glue flow.

5.Automatic clean system.

6.Offline or inline CCD programming is available.

7.Different types of nozzle are optional according to your glue type.

Analytical balance, pending board device, the workpiece heating device are optional.

Specifications

Model	OB-HT700H	OB-HT900
Dimensions	L700W1260H1600mm	L1200W1260H1600mm
Control method	Controller + IPC	Controller + IPC
Dispensing area	X=330mm Y=400mm Z=30mm	X=750mm Y=380mm Z=30mm
X.Y.Z driven method	Servo motor+ball screw	Servo motor+ball screw
Max. Running speed	1000mm/s	1000mm/s
Positioning accuracy	±0.02mm	±0.02mm
Repeat positionning accuracy	±0.02mm	±0.02mm
Nozzle	1set	1set
Nozzle heating	Room temp.-100℃	Room temp.-100℃
Communication port	SMEMA	SMEMA
Programming mode	Offline or inline visual programming	Offline or inline visual programming
Power	1P 220V 50/60HZ	1P 220V 50/60HZ
Air input	6Kg/CM2	6Kg/CM2
Total power	2.4KW	2.4KW
Weight	Approx.400KGS	Approx.800KGS
Optional
Analytical balance	Date reading accuracy 0.01mg
Laser height measure	Automatic laser height detection and automatic height calibration for Z axis after change the product
Workpiece heating device	Working zone heating,room temp-120℃±3℃
