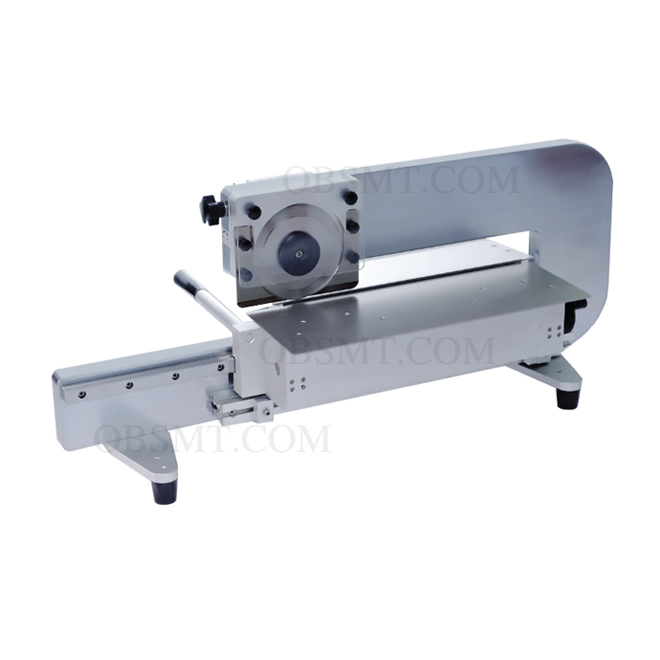

Hand push PCB V cutter machine
Model: OB-C668F
Brand: OUBEL
Delivery Time: 5-7 working days
Description
Hand push PCB V cutter machine
Down blade speed is adjustable , V groove duide is adjustable, suitable for all thickness PCB.
Leave message
Description
Hand push PCB V cutter machine
Features:
1.Hand-push V cutter,no electrical and pneumatic power!
2.Milling blade cutting,less stress and less substate bumpping problem,protect PCB better.
3.Easy and convenient to use,you can use skillfully no training!
4. Humanization design, adjust the blade easy and quick.
5.wide application,various PCB substrate,paper substrate can be used.
Dimensions:
| Model | OB-C668E | |||||||||||
| Dimensions | 425mm*265mm*445mm | |||||||||||
| Blade size | circular 125mm*3mm straight 365mm*43.5mm*6mm | |||||||||||
| Material | imported high quality speed steel | |||||||||||
| V-cut thickness | 1/3 plate thickness | |||||||||||
| Power | / | |||||||||||
| Pressure | / | |||||||||||
| Speed | 1mm-300mm/s | |||||||||||
| Voltage | / | |||||||||||
| Length | 1mm-500mm | |||||||||||
| Width | 1mm-100mm better | |||||||||||
| Suitable template | pcb glassy fiber substrate,FR-4 substrate,paper substrate | |||||||||||
| Weight | Approx. 30Kgs | |||||||||||
