FPC Cutting Machine

Model:OB-C668S

Brand:OUBEL

Delivery date:20-25 working days

Description

FPC Cutting Machine is Used for cutting PCB/LED board in SMT Production Line

Leave message

Leave message

Be the first to messgae “FPC Cutting Machine”

Your email address will not be published.

Description

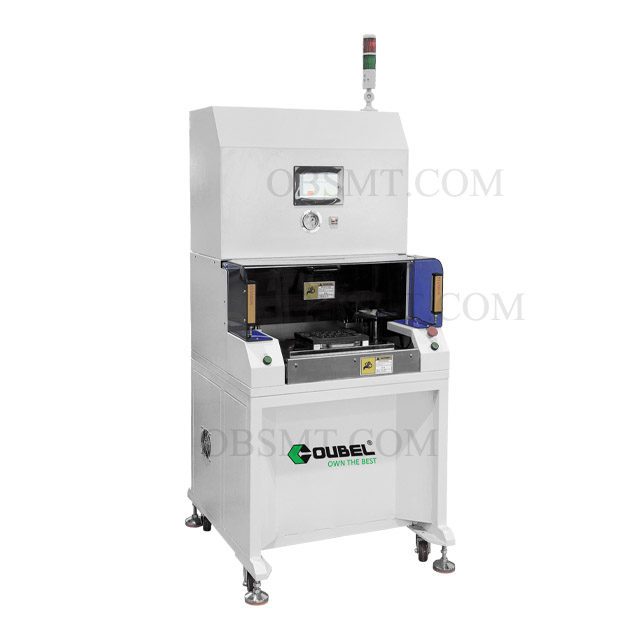

FPC Cutting Machine

Features

1. Machine runs smoothly with low vibration and noise;

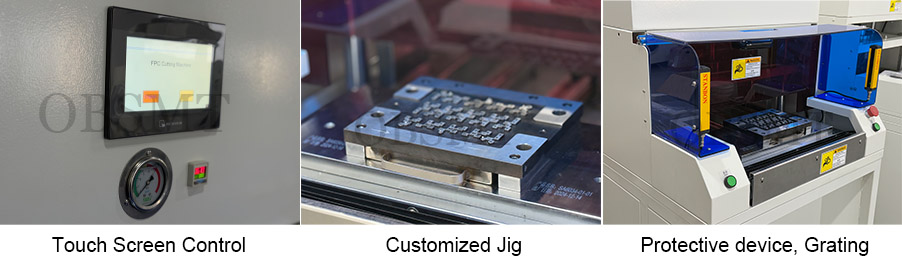

2.Touch screen display, clear panel, alarm function display, abnormal alarm at a glance;

3.Can replace many kinds of mold, and change the mold quickly and easily;

4.Set the emergency stop switch to stop the machine in time if any problem is found;

5.Set up the safety door shooting device, the wrong plate is placed on the mold, the shooting device can sense the error, the mold can not enter;

6.Safety air pressure setting function, overlimit alarm. Automatic counting, over limit stop;

7.High efficiency in cutting semi-finished PCB and FPC.

Specifications

Dimension 820×740×1750mm
Cutting force 3T   8T  10T
Work pressure 0.50-0.70Mpa
Working range 330×220mm
Voltage 220VAC
Travel speed 8~15s(adjustable)
Working noise ≤60dB
Work precision ±0.05mm
Weight 580kg
