Model:OB-MC500
Brand:OUBEL
Delivery date:20-25 working days

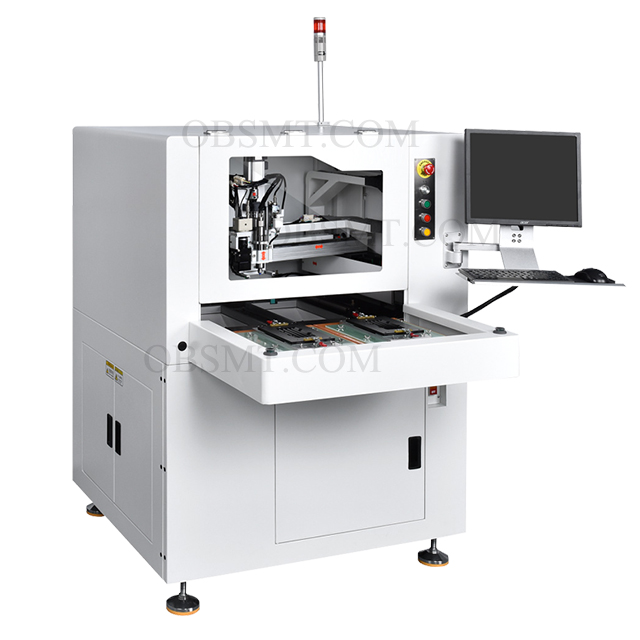

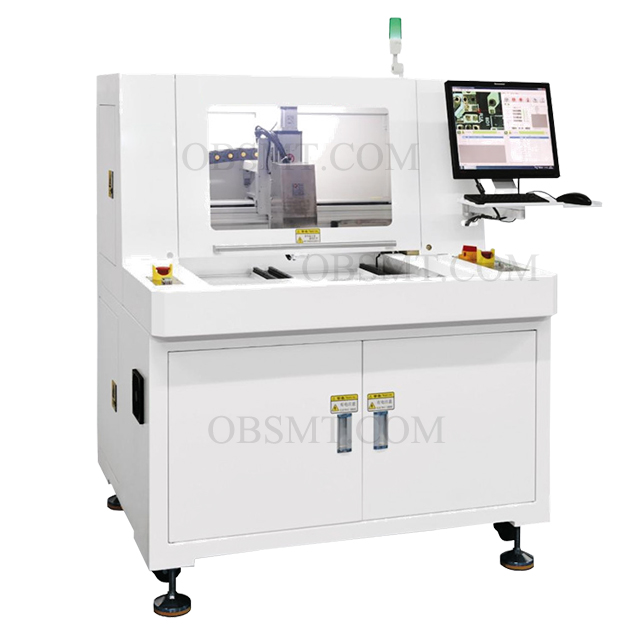

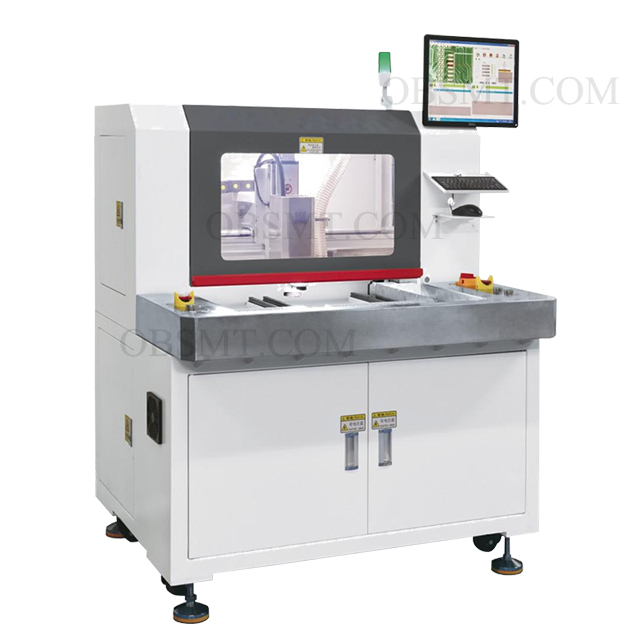

Four-Axis Dual-Platform Visual Cutting Machine is Used for cutting PCB/LED board in SMT Production Line
1. A precise machine visual system which consists of German imagining industrial camera,Japan Moritex lens,High pixel vision,automatic MRAK compensation improves editing and cutting accuracy;
2.Using four-axis high-speed spindle cutting PCBA board,adapt to a variety of cutting shape circuit board,such as:round line curve L-shaped U-shaped arc shaped;
3.Relates to an antistatic brush type upper dust collecting device,which has perfect dust absorbing effect;
4.Efficient and stable,accurate four-axis system,transport dual work platform using Panasonic servo ten screw,To ensure that the machine more accurate,faster,sub-plate stress smaller,stability,durability better;
5.Standard bar code scanning,can be achieved immediately after the board upload board bar code information.
Working range | 300*350mm |
Repeat accuracy | ±0.01mm |
Cutting precision | ±0.03mm |
Maximum travel stroke | X:700,Y:500,Z:100mm |
Spindle speed | 40000-60000RPM |
Cutting speed | 0~100mm/s |
Cutter size | φ0.8-3.0mm |
Voltage | AC 220V |
Dimension | 1200*1050*1440mm |
Weight | 700KGS |
Power | 2000W |
