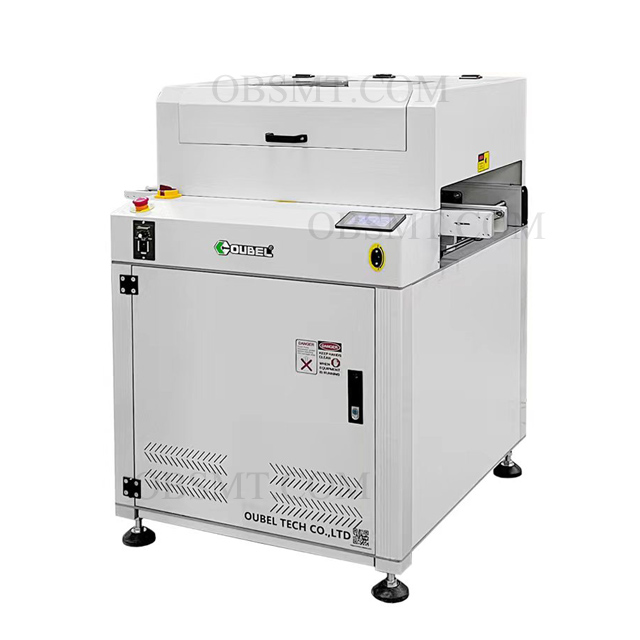

PCB Reject Conveyor With Cover1

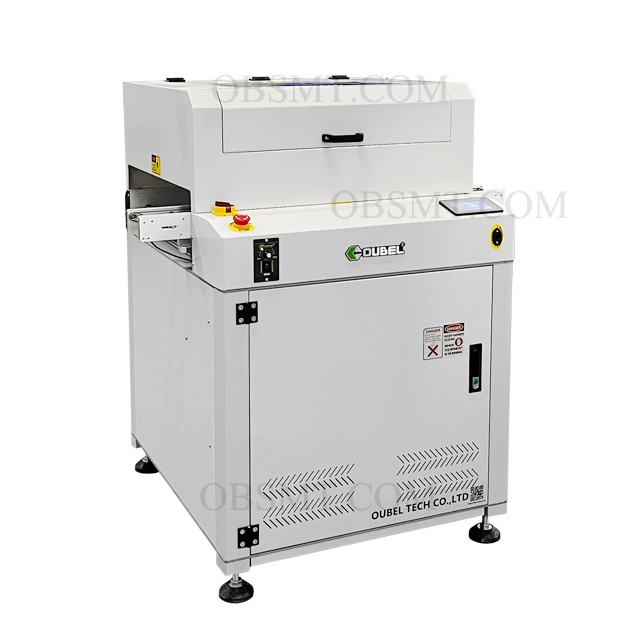

PCB-reject-conveyor2

PCB Reject Conveyor With Cover

Model: OB-RC608A
Brand: OUBEL
Delivery Time:4-10 working days

Categories: PCB Handling system, PCB Conveyor system Tags: PCB belt conveyor, Dual Rails Conveyor, SMT Reject Conveyor, SMT Buffer Conveyor, PCB conveyor, PCB loader unloader, NG OK conveyor, PCB buffer conveyor, SMT conveyor, pcb reject conveyor, PCB Inspection Conveyor

Description

PCB reject conveyor is used for NG PCB can be lifted up for visual inspection without interrupting. With dust cover.OK PCB can flow to next station.

Leave message

Leave message

Be the first to messgae “PCB Reject Conveyor With Cover”

Description

PCB Reject Conveyor With Cover

Features:

1.Reject,inspect and pass through modes provided.

2.PLC controller.

3.Stability enhanced by robust design.

4.Smooth and parallel width adjustment.

5.Length can be customized.

6.Speed is adjustable.

7.SMEMA compatible.

Note: Single or dual rails are customized.

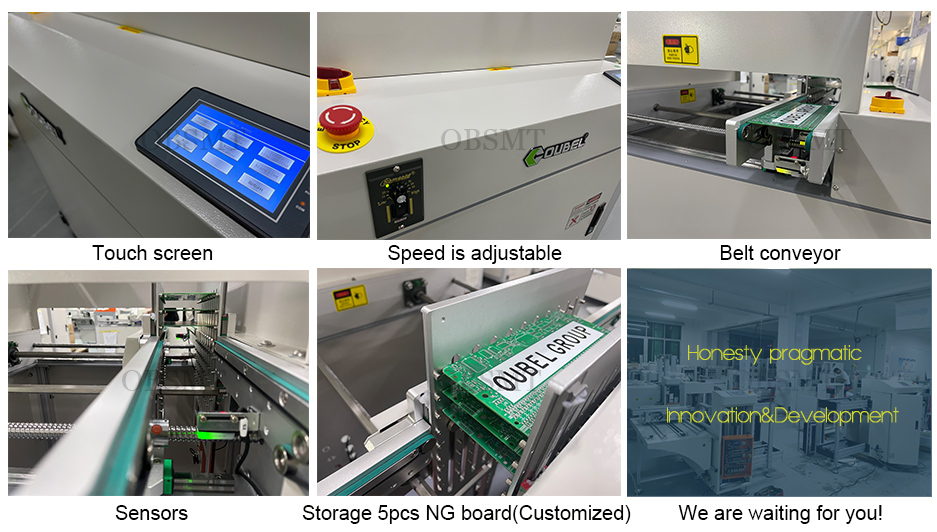

Details:

Specifications:

Model	OB-RC608				OB-RC608A
Dimensions	Length665900mm				Length735900mm
PCB size	5050-445330mm				5050-445460mm
Conveyor speed	0.5-20M/min
Power source	1P AC 110V/220V 50/60HZ
Power consumption	Max.100VA
Air pressure/consumption	4-6Bar ,10L/min
NG PCB quantity	3-5pcs
Conveyor height	910±20mm
Conveyor direction	L-R or R-L (optional)
Weight	Approx.75KGs				Approx.95KGs
