High End Wave Soldering Outfeed Conveyor

Model: OBEC-868A
Brand: OUBEL
Delivery Time: 10-15 working days

Description

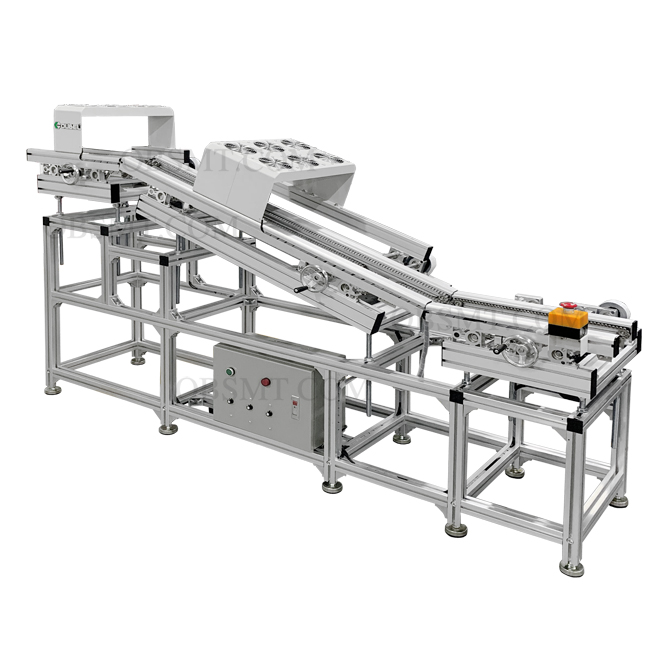

High End Wave Soldering Outfeed Conveyor

DIP Outfeed Conveyor

Used for unloading the PCBA after the wave soldering machine,Three-Sections Conveyor,With Cooling Fan

Leave message

Leave message

Be the first to messgae “High End Wave Soldering Outfeed Conveyor”

Your email address will not be published.

Description

High End Wave Soldering Outfeed Conveyor

Features:

1. For transfer to next station after PCB Soldering Process;
2. Parallel and smooth width adjustment(Leadscrew);
3. Special chain transmission,high efficiency,
4.PCB IN&OUT height is adjustable,easy to operation;
5.Adopting aluminum profle structure, with great appearance;
6. Smaller footprint;
7.With SMEMA;

Specifications:

Model OBEC-868A
Dimensions 2200*485*1400mm
Width 50-350mm
PCB direction L-R or R-L
Speed 0-5m/min adjustable
Power supply 1P AC220V 50/60Hz Max 100VA
Conveyor height input 1100-1350mm,output 700-950mm(adjustable)
PCB Thickness 0.6-5mm
Weight Approx.80Kgs
