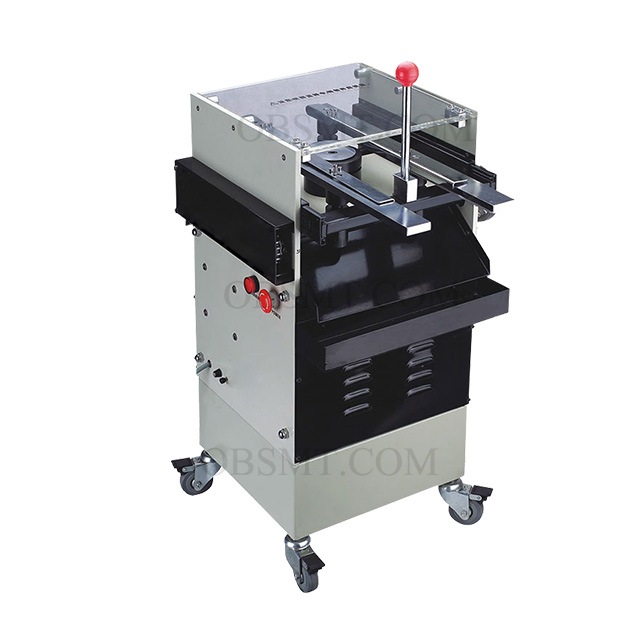

Manual PCB lead cutter

Model: OB-C668C
Brand: OUBEL
Delivery Time: 3-5 working days

Description

Manual PCB lead cutter: 1.Cutting the DIP board lead; 2.durable and cost effective.

Leave message

Leave message

Be the first to messgae “Manual PCB lead cutter”

Your email address will not be published.

Description

Manual PCB lead cutter

Features

1.It is using in the cutting the DIP chips lead after welding.

2.Cutting height can be adjustable. Blade running smooth,low noise, high efficient.

3.Special guide rail, longer lifespan,suitable for any 0.5-2.5mm thickness PCB.



Specifications

Model OB-C668C OB-C668D
Dimensions 550mm*410mm*800mm 650mm*510mm*950mm
PCB thickness Approx0.8-2.5mm
Length of the PCB Lead Approx1-3mm
Rotation speed 4500r/min
The route of the guide rail 0-220mm 0-280mm
Blade Φ200*70*3.5mm Φ250*70*3.5mm
Nominal power 550w
Power AC220V±10%     50Hz
Weight Approx.80KG Approx.90KG
