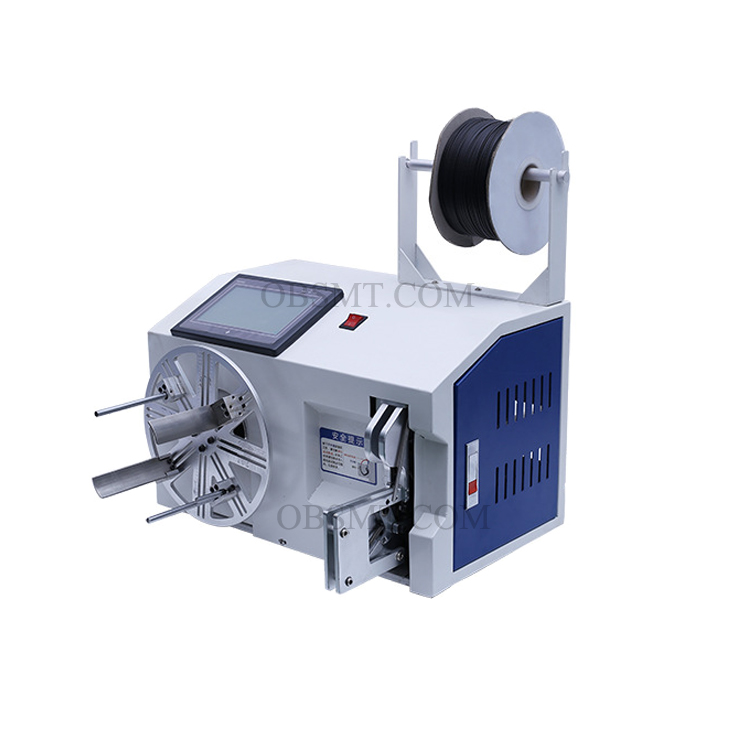

Desktop wire winding and binding machine
Model: OB-WB669
Brand: OUBEL
Delivery Time: 2-5 working days
It is using in the AC power fuse, DC power wire, USD data wire, Video wire, HDMI line, Internet wire, telephone wire etc. all kinds of transportation wire. Applies to the iron core which covered by the glue.
Desktop wire winding and binding machine
Features
1.High cost performance
Compare with the spool and bundle, this machine can improve the efficiency 3-4 times. One worker operating one pc of machine equal to 3-4 workers do it by manual. It reduce the labor and change the working environment.
2.Easy to operate, Function is practical.
Applies to the PLC control , easy and fast to set the parameters, such as the spooling qty, the length, the production etc. It can count the production qty automatically.
3.Flexible
It can be use by groups, or use it by single.
Specifications
|
Model
|
OB-WB669
|
|
|
Demensions
|
405X320X320mm
|
|
|
Voltage
|
AC220V
|
|
|
Supply frequency
|
50HZ/60HZ
|
|
|
Rated power
|
105W
|
|
|
Winding diameter
|
According to the wire length
|
|
|
Qty of the winding
|
According to the wire length
|
|
|
Binding wire range
|
Binding length
|
Harness diameter range
|
|
80-120mm
|
φ8-18mm
|
|
|
120-150mm
|
φ18-28mm
|
|
|
Binding qty
|
customized(suggest 3 )
|
|
|
Binding type
|
Iron core ribbon
|
|
|
protector
|
Fuse; alarm function
|
|
|
Weight
|
Approx.45Kg
|
|
