Automatic 1.5m Pick And Place Machine
Shop
Multi-Function Pick And Place Machine
October 23, 2019
Wire Stripping Machine
October 26, 2019
Automatic 1.5m Pick And Place Machine
Model: OB-M06
Brand: OUBEL
Delivery Time:20-25 working days

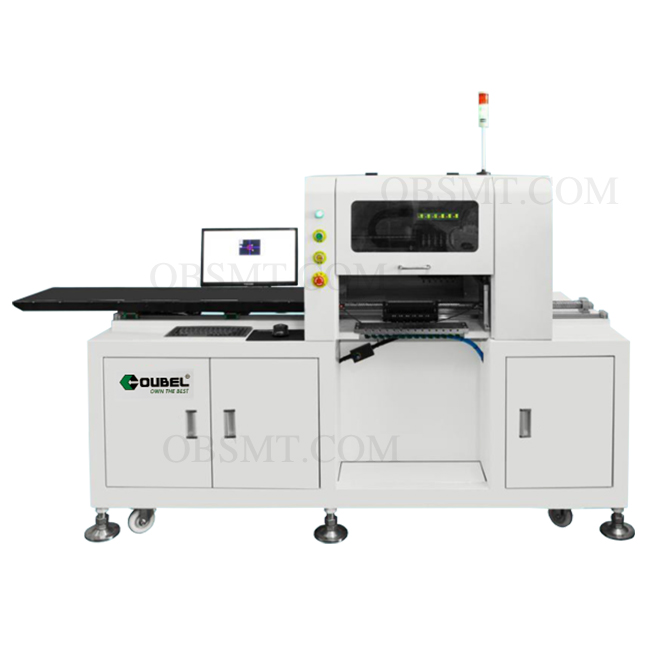

Semi-automatic 1.5m Pick And Place Machine,with 6/8 heads,suitable for LED PCB production line.
Semi-automatic 1.5m Pick And Place Machine
Description:
Use the most convenient positioning block, base plate origin positioning method to fix position. The Positioning is highly accurate (Precision less than 0.05mm). Mounting angle range 0-360° and the precision is 0.1°. Every picking nozzle is an independent rotation angle, moreover added with 6 cameras for components recognition. This machine can pick and place include LED tube light, and place at will on bulb light, down light, spot light, ceiling light, LED fence light, LED driving power supply, copper wire string light and so on.
Details:

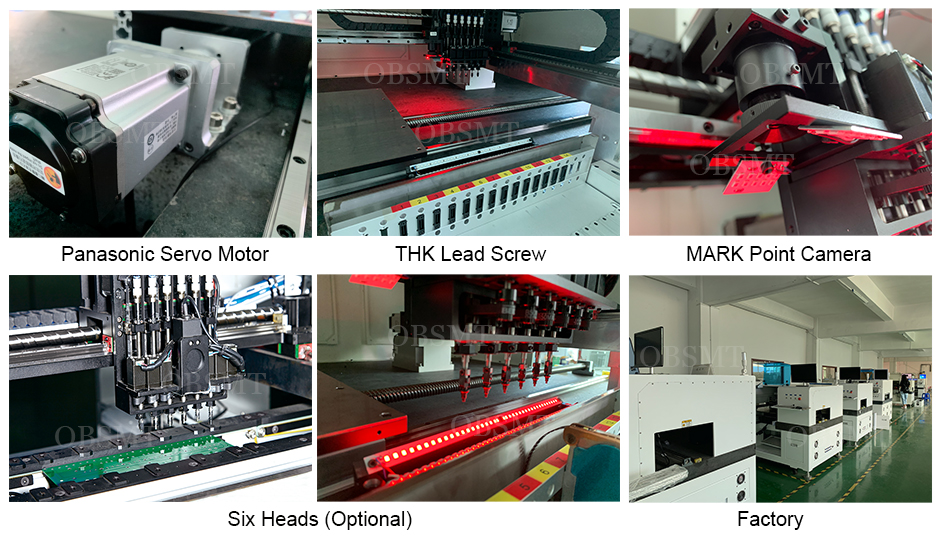

Six Head Pick&place machine
Specifications:
|
Product name
|
Semi automatic 1.5m pick and place machine
|
|
Maximum PCB area
|
1200×385mm
|
|
Maximum moving range
|
X axis 1200mm, Y axis 390mm
|
|
Mounting head
|
6/8 Heads
|
|
Z axis Maximum moving range
|
12mm
|
|
Max placement speed
|
40000CPH
|
|
Typical placement speed
|
0-35000CPH
|
|
Movement precision
|
±0.05mm
|
| Belt type feeder | 8mm, 12mm, 16mm, and 24mm feeder |
|
Positioning method
|
MARK point camera + 8 sets Sony visual camera position+1 set industrial camera
|
|
Transmission method
|
Semi-Automatic
|
|
Can mount components
|
0603 upper resistor and capacitor, and all kinds LED 3528, 7070 LED chips, meanwhile meet requirement of SOP SOT chip placement, and compatible with all kinds of high power chip mount.
|
|
Types of production
|
LED tube light、soft LED strip light、power supply driver、fence light、display module、display screen etc multi LED application products.
|
|
Programming method
|
Automatic Visual camera Positioning programming
|
|
Number of feeders station
|
14pcs of feeder stations for 8mm feeder or 7pcs feeder stations for 12mm feeders
|
|
Operating system
|
WINDOWS 7
|
|
Compressed air
|
0.55MPA
|
|
Power supply
|
220V, 50Hz, 2.0KW
|
|
Weight
|
1000Kg
|
|
Dimension
|
2000MM(L)*1200MM(W)*1450MM(H)
|
