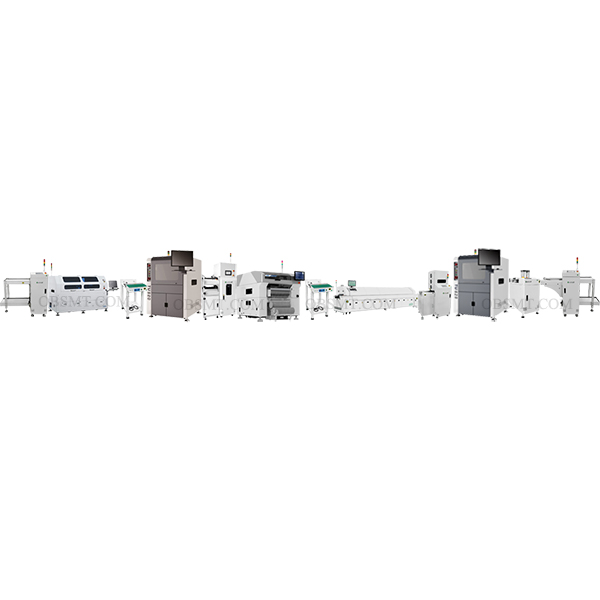

Auto SMT production line(Single rail)
Brand: OUBEL
Delivery time: 10-25 working days
Auto SMT production line,it is ued for high quality requirment production, save labor,high efficiency.

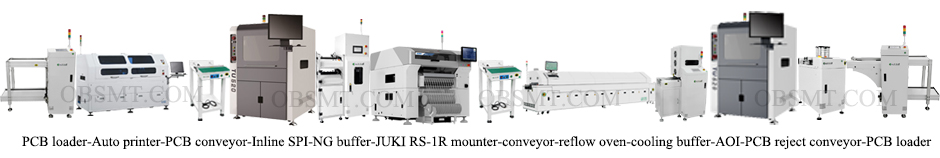

Auto SMT production line(Single rail)
PCB loader: It is used for loading PCBs automatically in SMT&DIP production line.
| Model | OB-L708 |
| Dimentions | 1430*800*1600mm |
| Magazine size | 355*320*563(mm) |
| PCB size | 350*50-250(mm) |
| Communication | SMEMA signal |
| Weight | Approx.220KGS |
Auto printer：High precision and efficiency.
| Model | OB-CL400 |
| PCB Size (mm) | 50*50 ~ 400*340 |
| Support System | Magnetic Pin/Up-down table adjusted/support block |
| Cleaning System | Dry, Wet, Vacumm |
| Printing Accuracy | ±0.025mm |
| Air Pressure | 4.5 ~ 6Kg/cm2 |
| Power Supply | AC: 220±10%, 50/60HZ, 3KW |
| Dimension(mm) | 1240*1450*1510mm |
PCB conveyor: It is used for connect front and back machine in SMT line.
Inline SPI:It is used after the auto printer,to test the printing conditions.
NG buffer:For storage the NG borad and flow to the up lever for inspection after the tester(AOI/SPI).OK board will flow to next station.
| Model | OB-BC608-N |
| Dimensions | 800*910*1600mm |
| PCB size | 50*50-330*250mm |
| Maximum PCB capacity | 12pcs or customized |
| Maxium load | 1.5KG/pc |
| Weight | Approx.260Kgs |
Fast smaert modular mounter JUKI RS-1R:Superior Productivity. Versatility.With the best throughput in an advanced, all-in-one.
| Model | RS-1R | ||||
|---|---|---|---|---|---|
| Conveyor specification | standard | 150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs | max.112*2 | ||||
Reflow oven:It is used for SMT production line.
| Model | HS-0802-LF |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Conveyor speed | 0～2000mm/Min |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
PCB cooling buffer: After the reflow oven, with cooling fans,used for stock PCBs.
| Model | OB-MBC608 |
| Dimensions | 430*764*1250mm |
| PCB size | 50*50-330*250mm |
| Circle time | About 10s |
| PCB capacity | 25pcs( or customized) |
| Weight | Approx.140Kgs |
Inline AOI: With high speed and high precision visual processing technology automatically detect various PCB SMT errors and weld defects.
PCB reject coveyor:PCB reject conveyor is used for NG PCB can be lifted up for visual inspection without interrupting. OK PCB can flow to next station.
| Model | OB-RC608 |
| Dimensions | Length*665*900mm |
| PCB size | 50*50-445*330mm |
| Conveyor speed | 0.5-20M/min |
| NG PCB quantity | Customized |
| Weight | Approx.75KGs |
PCB unloader:PCB magazine unloader is used for unloading PCBs automatically in SMT&DIP production lines.
| Model | OB-UL718 |
| Dimensions | 1730*765*1250mm |
| Magazine size | 355*320*563mm |
| PCB size | 350*50-250mm |
| Weight | Approx. 260KGS |
All of our machines can accept customized,welcome to contact us to get more information!
