Auto SMT production line( 2 in 1 dual rails reflow oven)
Brand: OUBEL
Delivery time: 15-30 working days
Auto SMT production line(2 in 1 dual rails reflow oven),It suit for large SMT production, improve production efficiency and power saving.

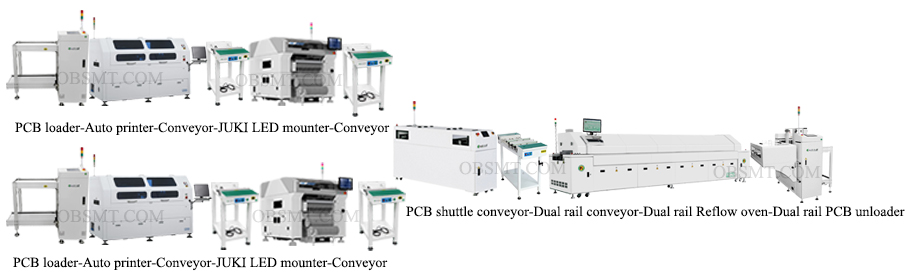

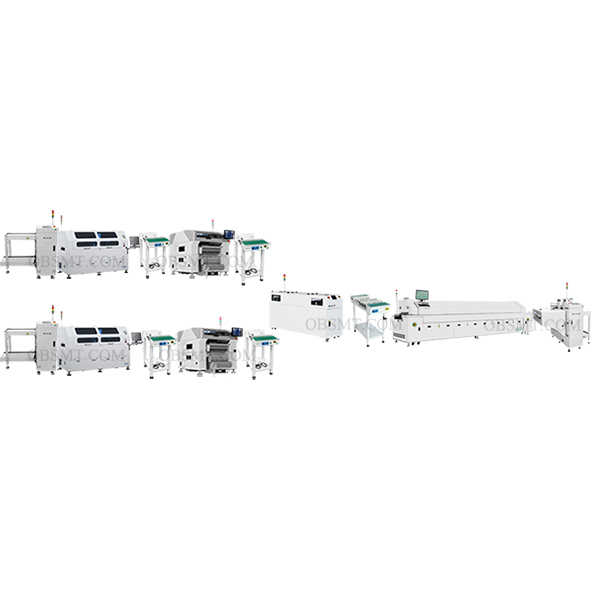

Auto SMT production line( 2 in 1 dual rails reflow oven)
PCB loader: It is used for loading PCBs automatically in SMT&DIP production line.
| Model | OB-L708 |
| Dimentions | 1430*800*1600mm |
| Magazine size | 355*320*563(mm) |
| PCB size | 350*50-250(mm) |
| Air supply | 5kgf/cm2 |
| Weight | Approx.220KGS |
Auto printer: It is used for auto printing the PCB/LED.
| Model | OB-CL400 |
| PCB Size (mm) | 50*50 ~ 400*340 |
| Support System | Magnetic Pin/Up-down table adjusted/support block |
| Cleaning System | Dry, Wet, Vacumm |
| Printing Accuracy | ±0.025mm |
| Air Pressure | 4.5 ~ 6Kg/cm2 |
| Power Supply | AC: 220±10%, 50/60HZ, 3KW |
| Dimension(mm) | 1240*1450*1510mm |
PCB conveyor
JUKI RS-1R pick and place machine: Superior Productivity. Versatility.With the best throughput in an advanced, all-in-one.
| Model | RS-1R | ||||
|---|---|---|---|---|---|
| Conveyor specification | standard | 150mm conveyor extensions, upstream and downstream |
250mm conveyor extensions, upstream and downstream |
||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs | max.112*2 | ||||
PCB shuttle conveyor: It sed to redirect flow of PCBs into different channels in a production line.
| Model | OB-SC618 |
| Dimensions | 500*W*1050mm |
| PCB size | 50*50-330*250mm |
| Belt type | Round belt or flat belt (optional) |
| Weight | Approx.140Kgs |
Dual rails reflow oven: It used after the pick and place machine,power saving!
| Model | HS-0802-LF |
| Quantities of heating zones | Top8 /bottom8 |
| Length of heating zones | 3500mm |
| Quantities of cooling zones | Up 2 ,Down 2 |
| Max width of PCB | 400mm |
| Width of conveyor | 50~400mm |
| Conveyor | Chain conveyor and meshwork conveyor |
| Conveyor speed | 0～2000mm/Min |
| Dimensions(mm)L*W*H | 5400*1370*1555mm |
| Weight (Approx.) | 2200kg |
Dual rails PCB unloader: With two rails, double production efficiency.
| Model | OB-DUL718 |
| Dimensions | 1510*1550*1250(mm) |
| Magazine size | 355*320*563(mm) |
| PCB size | 350*50-250(mm) |
| Magazine quantity | Up 1, down 1 |
| Weight | Approx. 320KGS |
Welcome to contact us to get more information,we will reply ASAP!
