Auto PCB conveyor

Model: OB-AC608
Brand: OUBEL
Delivery Time: 2-7 working days

Description

Auto PCB conveyor is used for transmission the PCB, connect the front and back machine. PLC+touch screen control.
**E: sales@obsmt.com

Leave message

Leave message

Be the first to messgae “Auto PCB conveyor”

Your email address will not be published.

Description

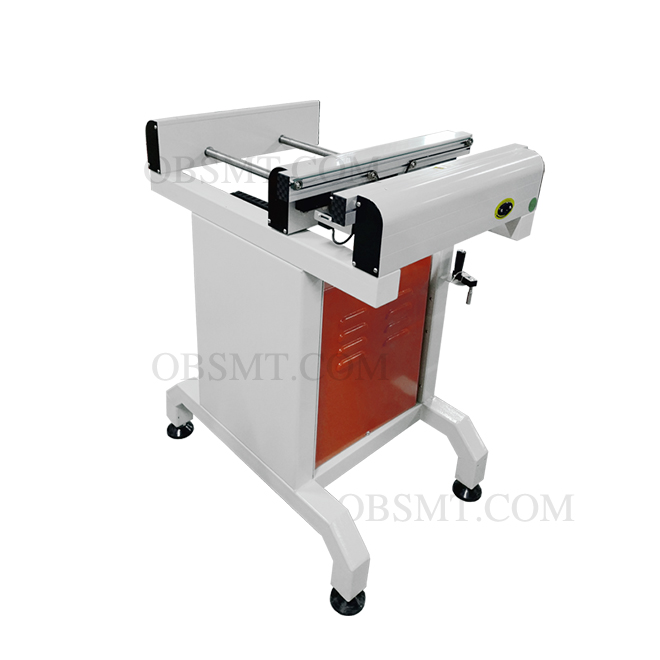

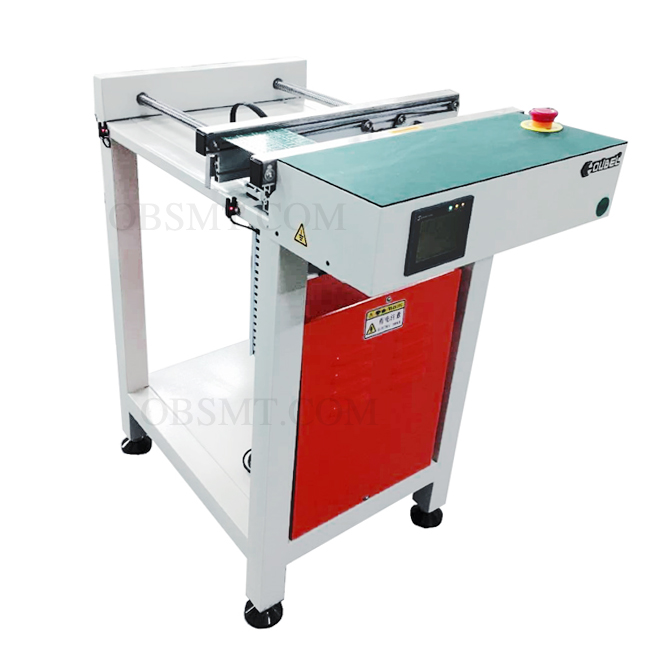

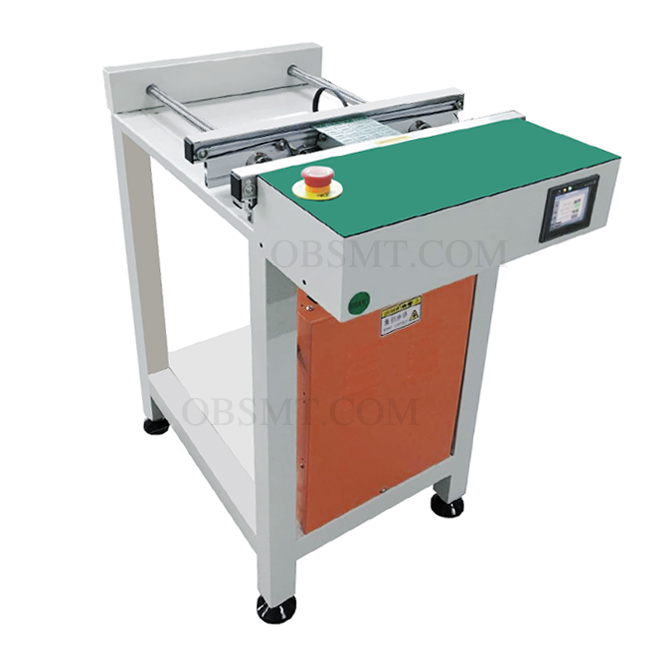

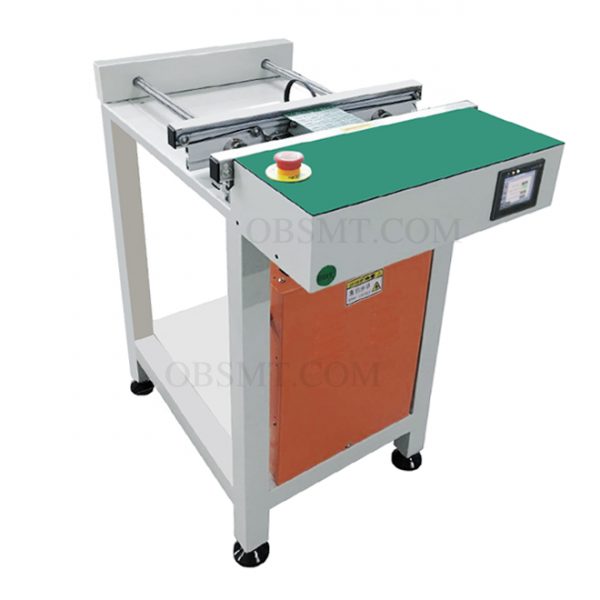

Auto PCB Conveyor

Features:

1.Applies to the PLC+touch screen control, stable and easy to operate.

2.Bottom weighted design improves running stability.

3.Inspection mode and automatic mode.

4.Speed is adjustable.

5.Size is customized.

6.Width adjustment by auto.

7.With SMEMA.

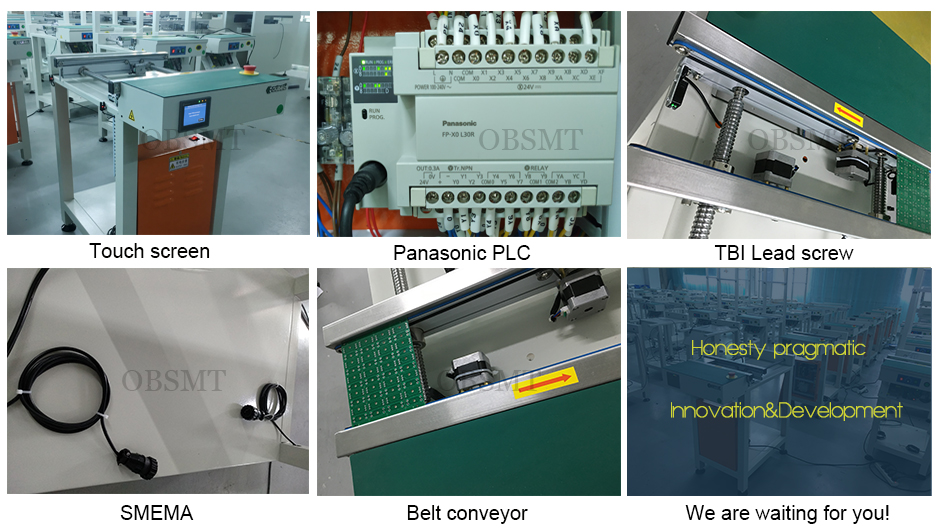

Details:

Specifications:

Model OB-AC608
Dimensions Length*690*910mm
PCB width 50-350mm
PCB direction L-R or R-L(optional)
Conveyor speed 0.5-20M/min
Power 1P AC 110V/220V 50/60HZ
Conveyor height 900±20mm
Weight Approx.60Kgs
