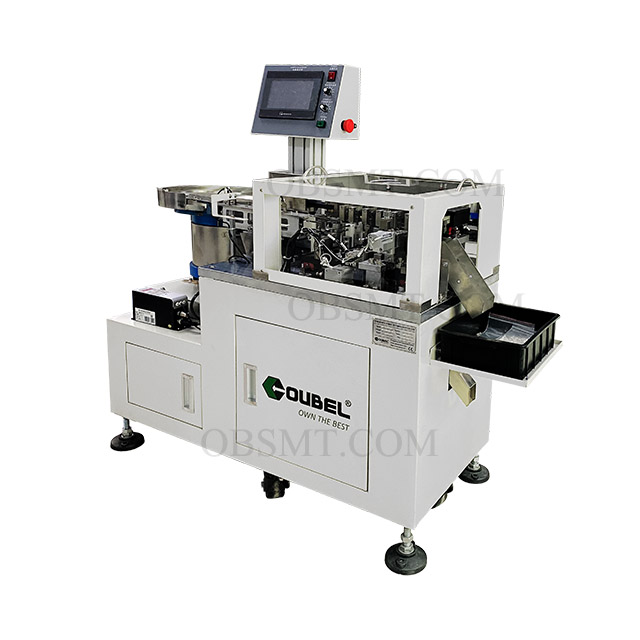

Auto LED chips crimping and forming machine
Description
LED chips crimping and forming machine ; Applies to the vibrating feeder to auto feeding the chips ; Integral mould let change more easier; Welcome to customized!
Description
Applies:

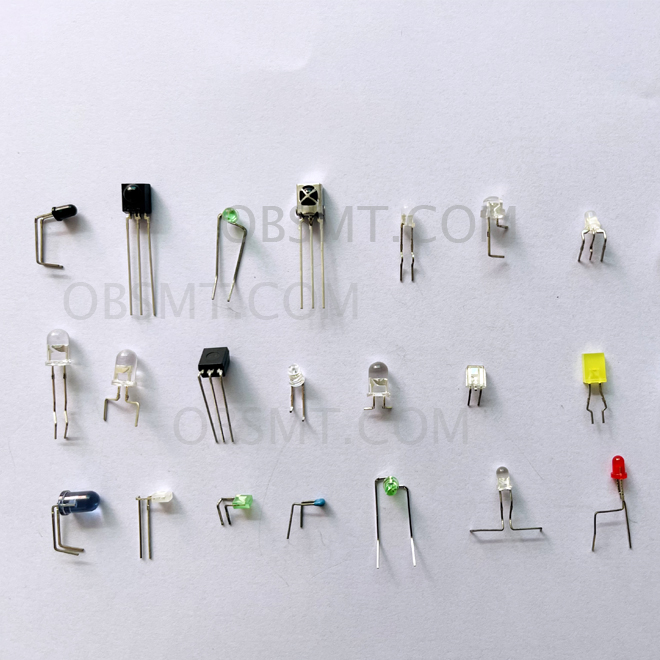

Crimping ,cutting ,K shape the LED, electrolytic capacitors, capacitance, the radial components such as crystals, triode etc.chips lead.
Features:
- Independent design control board ,it is automatically fed by the vibrating feeder, and the manipulator takes out the material, reshapes, tests the polarity, divides the direction, cuts the foot, and forms the material, and completes the division of each station.
- Applies to the 7inch touch screen controller, Chinese-English language to change, easy to operate;
- The integral structure is adopted, which is compact and easy to handle. The mould is a combined mould, which is easy to replace.
- Moving controlled by motor and slide ,low noise.
- Blade applies to the imported SKD-11 , durable and longer lifespan.
- Crimping type can customized.
Specifications :
Model |
OB-CF620E |
Dimensions |
L1200×W600×H1200MM |
Production speed |
3600~3900PCS/H |
Packing type |
Bulk chips |
Crimping lead pitch |
2.5mm 、5mm or customized |
Head height |
5.0mm –10.0mm or customized |
Chips length |
20-34mm or customized |
Power source |
1P AC 220V 50/60HZ |
Air source |
4—6Kg/cm2 |
Weight |
Approx.360KGS |
