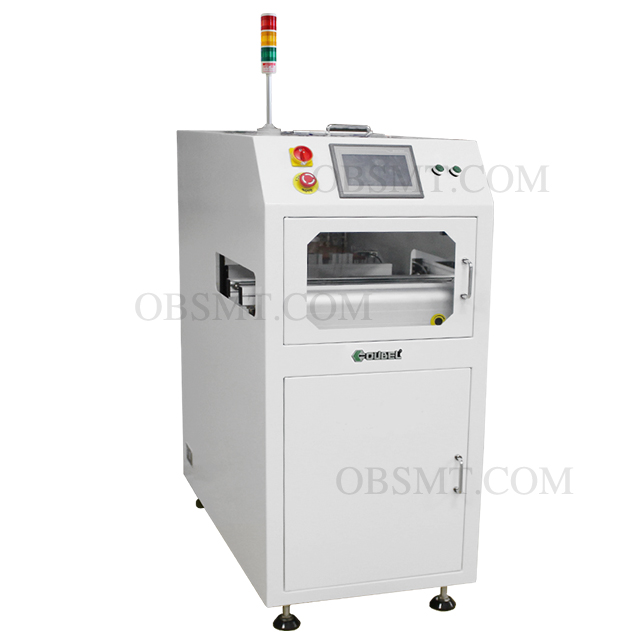

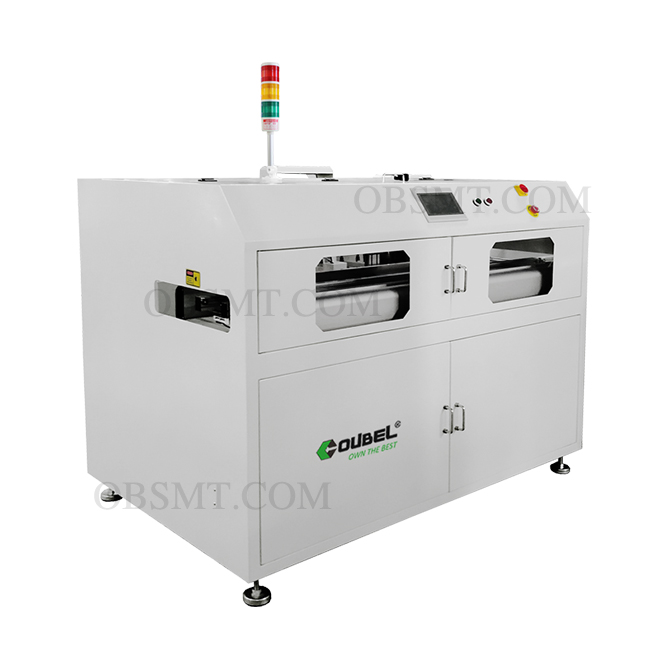

1.2M PCB Vacuum suction loader
Model: OB-SL708L
Brand: OUBEL
Delivery Time:4-10 working days
Description
1.2m PCB vacuum suction loader is used for loading the bare PCBs automatically by vacuum in SMT&DIP production line.
**E:sales@obsmt.com
Leave message
Description
1.2M PCB Vacuum suction loader
Features:
1.Applies to the PLC + touch screen control, easy to operate.
2.Enclosed design ensures highest leavel of safety.
3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
4.Smooth and parallel width adjustment (leadscrew)
5.Smooth and accurate translation (stepping motor)
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.

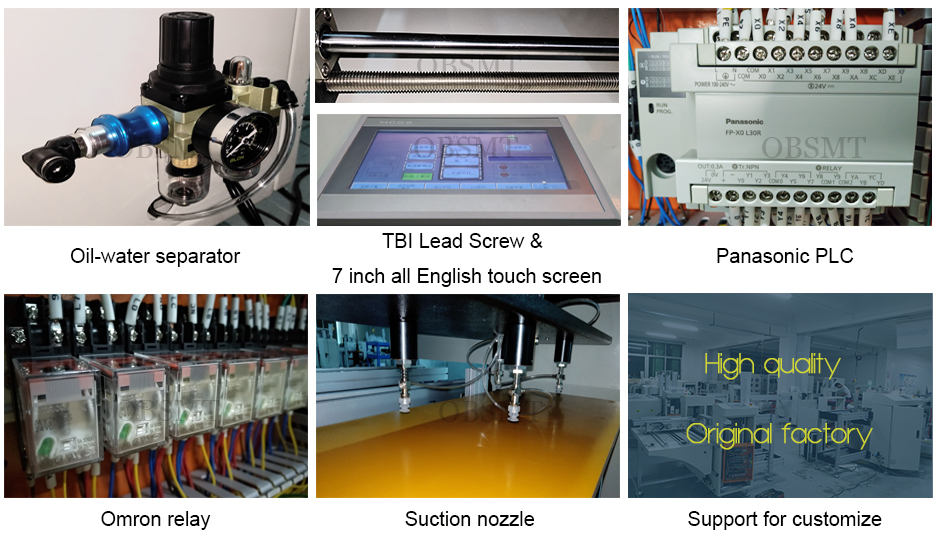

Details:
Specifications:
| Model | OB-SL708 | OB-SL708L | |||||||||
| Dimensions | 550*1002*1300mm | 800*1270*1300mm | |||||||||
| PCB size | 50*50-445*330mm | 50*50-530*460mm | |||||||||
| PCB capacity | 400pcs | ||||||||||
| PCB loading time | Approx. 12s | ||||||||||
| Power | AC 110V/220V 50/60HZ | ||||||||||
| Air pressure | 4-6bar, max. 30L/min | ||||||||||
| Conveyor height | 900±20mm | ||||||||||
| Conveyor direction | L-R or R-L (optional) | ||||||||||
| Weight | Approx. 130KGS | Approx. 160KGS | |||||||||
