JUKI RS-1 pick and place machine now updated to the RS-1R pick and place machine.
Speed from before 42000CPH updated to now 47000RPM! Highest output !

OBSMT JUKI RS-1R

Features:

(１)Maximum speed of 47,000 CPH
By bringing the laser sensor closer to the PCB and shortening the travel time from pick to placement results in a tact time of 47,000 CPH (under optimum conditions).

(２)Evolution of the “Takumi head” in which self optimizes its height for optimal placement speed and highest component flexibility

(3) An additional height setting has been added, bringing the total to six (1mm, 3mm, 6mm, 12mm, 20mm, and 25mm). This results in improved tact time for the more common, shorter components.

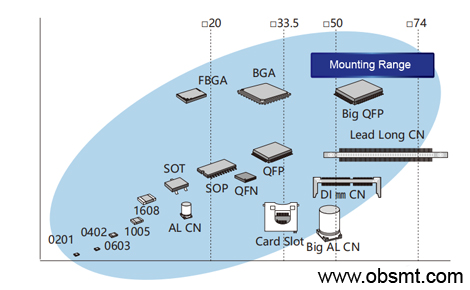

(4) Wide range chips mounting range. From 0201* 1-74mm. Also suitable for 50*150mm. Max.chips height up to 25mm.

OUBEL JUKI mounter

(5)Industry-first RFID tagged nozzles (optional)

(6) Most suitable for LED PCB mounting
*Achieving High Precision Mounting of Diffusion Lens

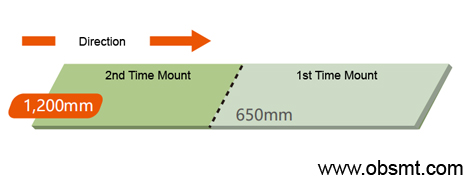

* 1st time clamp 650*370mm, 2nd time clamp to 950*370mm of the PCB .
After with the extended guide rail (optional) , Max. suitable for 1200*370mm.

obsmt JUKI RS-1R mounting pcb size

OUBEL can provide you SMT whole line solution:

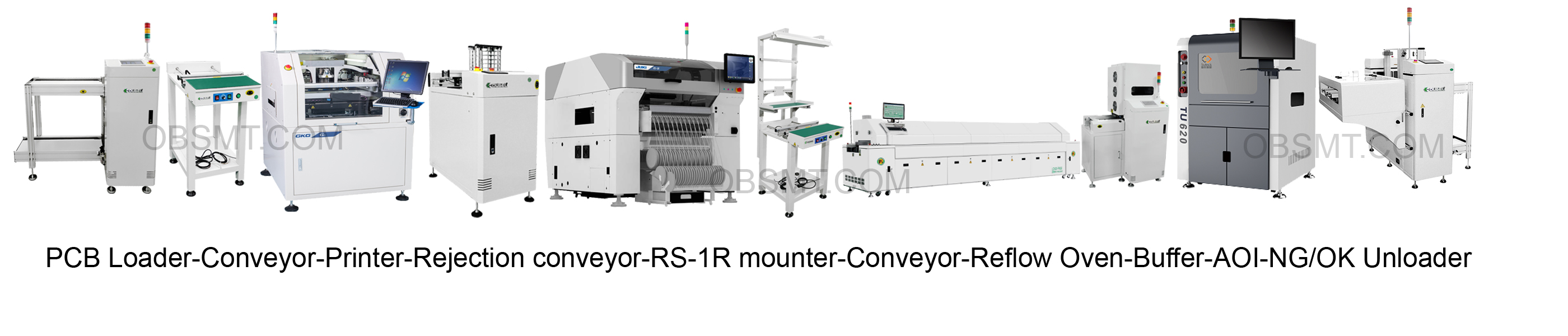

PCB loader –PCB conveyor–Auto printer–PCB rejection conveyor –JUKI RS-1R pick and place machine –PCB inspection conveyor –8 zones reflow oven –PCB cooling buffer–AOI –PCB NG OK unloader

OBSMT SMT whole line

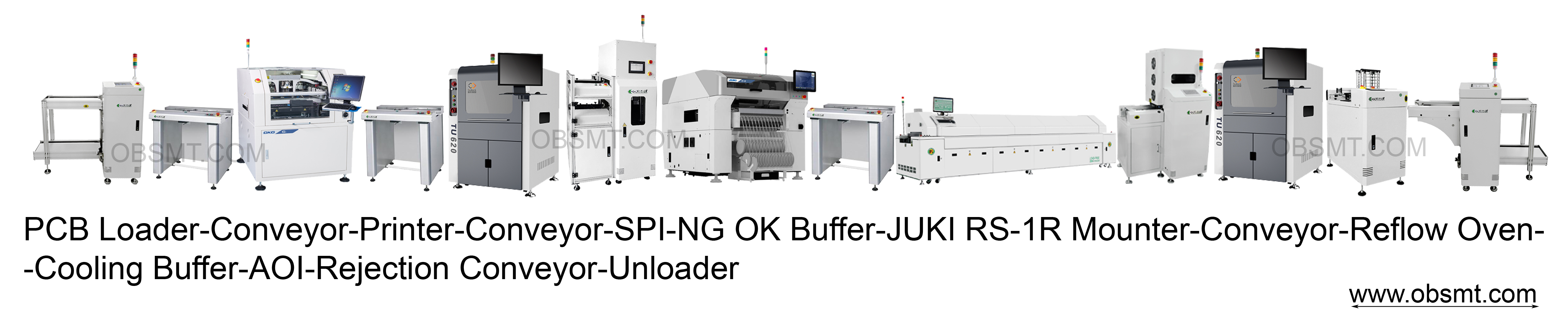

PCB Loader–PCB conveyor–Auto printer–PCB conveyor–SPI– NG Buffer–JUKI RS-1R Pick and place machine–PCB inspection conveyor–8 zones reflow oven–PCB cooling buffer–AOI–PCB rejection conveyor–PCB unloader

OBSMT SMT whole line sollution 2

Any interesting, welcome contact us! Will reply you ASAP！
