How to maintain a Reflow Oven?

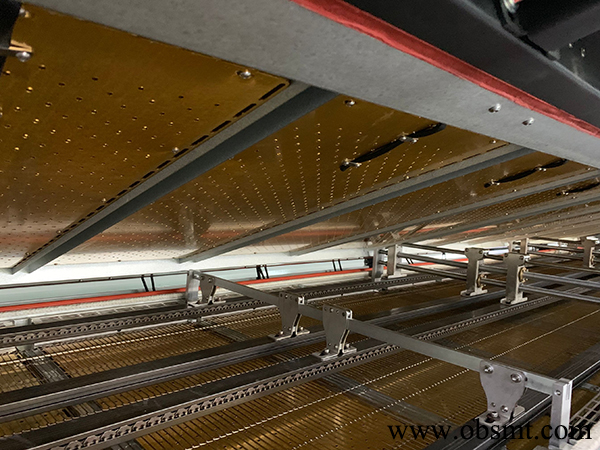

OUBEL new design reflow oven

In SMT equipment, the rosin flux in solder paste will remain in the inner wall of reflow furnace and cooling zone pipeline for a period of time. A large number of residues reduce the temperature control accuracy and welding quality of reflow furnace. Therefore, it is necessary to remove the cooler manually and clean it. Wipe and clean the furnace interior.

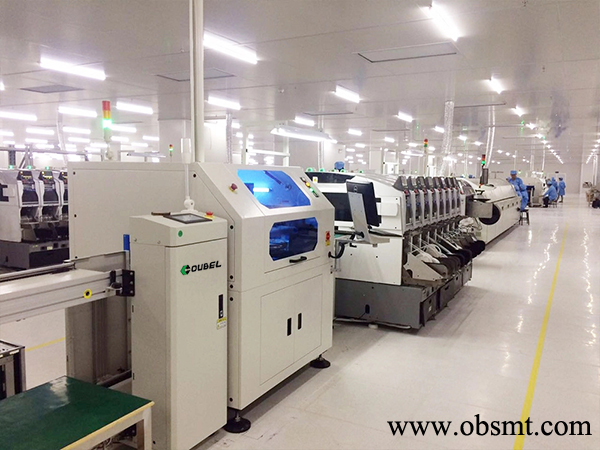

OUBEL SMT prodcution assembly line


Proper reflow oven maintenance can extend its life cycle, keep the machine in good condition, and improve production efficiency and product quality. One of the most important tasks for properly maintaining a reflow oven is remove the built-up flux residue inside the oven’s chamber. Although there is a flux collection system in modern reflow machines, there still is a big probability tha flux will adhere to the inert air ventilation pipe and thermal regulator panel. This will cause inaccurate thermal data readings and the thermal controller will make the wrong adjustment instructions.

OUBEL reflow oven

The following is a list of daily, house-keeping tasks to be accomplished for maintaining a reflow oven:
1.Clean and wipe down the machine daily. Make a neat workplace.
2.Check conveyor chains, sprockets, mesh and the automatic lubrication system. Add lubricate oil on time.
3.Clean the photoelectric switches which detect whether a board is within or outstide of the reflow oven.

Additional maintenance tasks include:
1.Once the chamber temperature decreases to room temperature, open the hood and clean the inside surface of chamber with a proper cleaning agent.
2.Clean the ventilation pipe with a cleaning agent.
3.Vacuum the chamber and remove the flux residue and soldering balls
4.Check and clean the air blower
5.Check and replace the air filter

OUBEL also can provide whole SMT production line solutions:

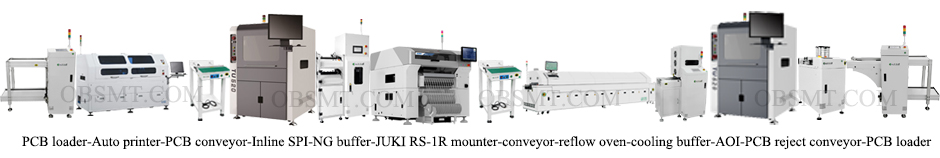

OUBEL Auto SMT prodcution line

If you are interested,pls contact vicky@obsmt.com.We will reply ASAP!
